2.4G RF Transceiver Module with BEKEN BK242 Design
Module introduction
This DL-24BK25 is a compact, low-cost, long-distance 2.4g RF transceiver module, which was designed base on BEKEN’s BK2425 wireless transceiver chip. This module is widely used in smart home, toy aeromodelling, close-range data transmission control. Sensitivity can reach -85dbm, maximum transmission rate can reach 2Mbps, and output power can range from -10dbm to +4dbm through register configuration.
The 2.4G RF module is integrated with all RF related devices and has PCB onboard antenna, so excellent RF performance can be obtained without additional antenna configuration. You can easily develop wireless products with stable performance and high reliability directly, without in-depth understanding of RF circuit design, which will extremely shorten the development cycle.
There are 2 interface modes (SMD and DIP) been adopted, but manual welding is required due to different thermal expansion coefficient of the black glue and the binding wire inside. The small size of the module is convenient for portable products, and it can well meet the requirements of low-power system by combining with low-power MCU.
Features
● Working frequency: 2400-2483MHz
● Working voltage: 1.9~3.6V
● Transmission distance: 120m in open air (250KHz)
● Programmable Carrier Detection, Digital RSSI Output
● Excellent selectivity and out-of-band isolation
● Gold plating PCB binding process, quite cost-effective
● With 10ppm precision cylindrical crystal, excellent performance
Applications
● Wireless game controllers, toys
● Wireless keyboard, mouse
● Consumer electronics and toy aeromodelling
● Wireless voice/audio transmission
● Data monitoring transmission
● Intelligent home control
● Remoter that support radio frequency (RF) technology
Download Center
Technical Parameter
DC characteristics
| Description | Min. | Max. | Unit |
| Voltage | 1.9 | 3.6 | V |
Operating current | RX ＜16.5mA | TX=18mA@4dbm | mA |
Stand-by current | ＜1uA | uA | |
| IO port voltage | Vss-0.3 | Vdd+0.3 | V |
| Operating temperature | -20 | +65 | ℃ |
Radio frequency characteristics (Unless otherwise stated, temperature 25 ℃, VCC 3.3V)
| No | Characteristics | Technical Parameter Min.-Typ.-Max. | Unit |
| 1 | Working frequency | 2400,—，2483.5 | MHz |
| 2 | Frequency interval | —,100K,— | Hz |
| 3 | Output Power | -10,—,4 | dBm |
| 4 | Receive sensitivity | —,-89,— | dBm |
| 5 | Modulation | GFSK,2-FSK,OOK | MSK |
| 6 | Transmission rate | 1.2,—,2000 | Kbps |
| 7 | Harmonic power | -48,—,-45 | dBm |
| 8 | Communication distance | 80,—,100 | M |
| 9 | Sensitivity in 2.4k | —,-95,— | dBm |
| 10 | Standby Power Consumption | —,—,0.9 | MHz |
| 11 | Crystal Precision *3225/ 2*6 | —,10,— | PPM |
Pin Definitions
| No | Name | Description |
| 1 | VDD | Power supply voltage, DC 1.9-3.6V |
| 2 | CE | Chip select enable port |
| 3 | CSN | CSN=0 valid |
| 4 | SCLK | SPI clock |
| 5 | MOSI | SPI data input, MOSI |
| 6 | MISO | SPI data output, MISO |
| 7 | IRQ | Interrupt request port |
| 8 | GND | Grounding |
| ANT | PCB | PCB onboard antenna as defaulted |

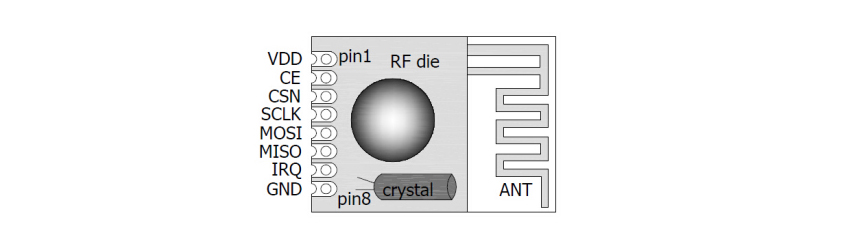

Size and Layout:
