DL-24A
2.4G-2.5Ghz
CC2500
-30~1dBm
1.8~3.6V
-89dBm
100m
17.6*12*2mm
| Quantity: | |
|---|---|

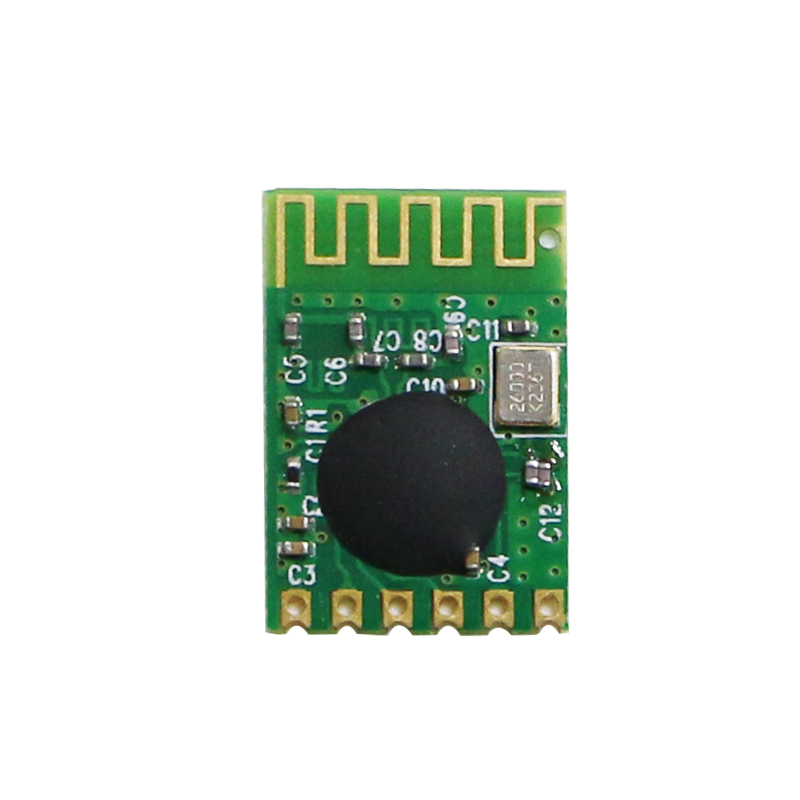

High-performance 2.4G Transceiver Module with TI Chip
Module introduction
Designed base on TI-Chipcon's CC2500 wireless transceiver chip, DL-24A is a compact,cost-effective, remote wireless transceiver module, which is widely used in smart home, toy aeromodelling and close-range data transmission control fields. Sensitivity up to -98dbm,maximum transfer rate up to 500Kbps, output power through register configuration range from -30dbm to +1dbm.
This wireless module integrates all radio frequency related functions, you can easily develop wireless products with stable performance and high reliability directly, which will extremely shorten the development cycle without in-depth understanding of RF circuit design. SMD and DIP interface modes are adopted, but manual welding is required due to different thermal expansion coefficient of the black glue and the binding wire inside.
The small size of the module is convenient for portable products, and it can well meet therequirements of low-power system by combining with low-power MCU.
Applications
● Transmission distance: 100m in open air (250Kbps);
● Operating frequency: 2400-2483mhz
● Operating voltage: 1.8V-3.6V
● Programmable carrier detection, digital RSSI output
● Excellent selectivity and out-of-band isolation
● Gold plate binding process, high cost performance
● Four-line SPI interface, strong versatility;
Features
● Wireless game controller
● Wireless keyboard and mouse
● Consumer electronics and toy model airplanes
● Wireless voice/audio transmission
● Data monitoring transmission
● Smart home control
● Remote control that supports radio frequency (RF) technology
Download Center
Technical Parameter
| No | Parameter | Reference Value Min.-Typ.-Max. | Unit |
| 1 | Working frequency | 2400,—，2483.5 | MHz |
| 2 | Frequency interval | —,100K,— | Hz |
| 3 | Transmit Power | -30,—,1 | dBm |
| 4 | Receiving sensitivity | —,-89,— | dBm |
| 5 | Modulation | GFSK,2-FSK,OOK | MSK |
| 6 | Transmission rate | 1.2,—,500 | Kbps |
| 7 | Harmonic power | -48,—,-45 | dBm |
| 8 | Communication distance | 80,—,100 | M |
| 9 | Sensitivity at a rate of 2.4K | —,-104,— | dBm |
| 10 | Rate in OOK modulation mode | —,—,100 | Kbps |
| 11 | Standby Power Consumption | —,—,0.9 | mA |
| 12 | Crystal Precision *3225/ 2*6 | —,10,— | PPM |
Pin Definitions
| Pin No | Pin’s Name | Description |
| 1 | VCC | Positive power supply, 1.8~3.6V |
| 2 | MOSI | SPI data input, MOSI |
| 3 | SCLK | SPI CLOCK signal |
| 4 | MISO | SPI data output, MISO |
| 5 | CSN | CSN=0 valid |
| 6 | GND | Grounding, common ground with the system |
| 7 | ANT | Antenna interface, the standard 50 Ω antenna |
Size
High quality 2.4G RF module, 2.4GHz Wireless Module, 2.4G Receiving module, 2.4GHz RF front-end module, 2.4G RF Transceiver Module, 2.4G RF Modules Supplier from China - DreamLNK
