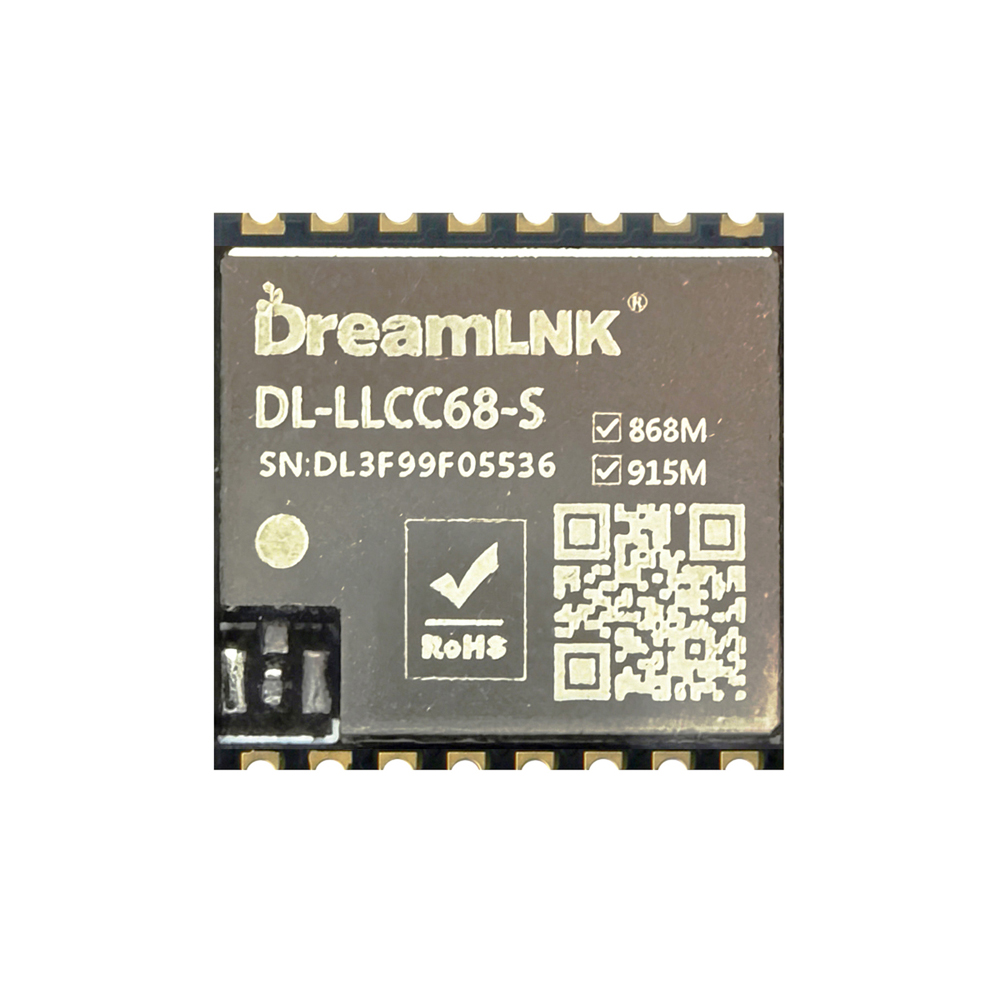

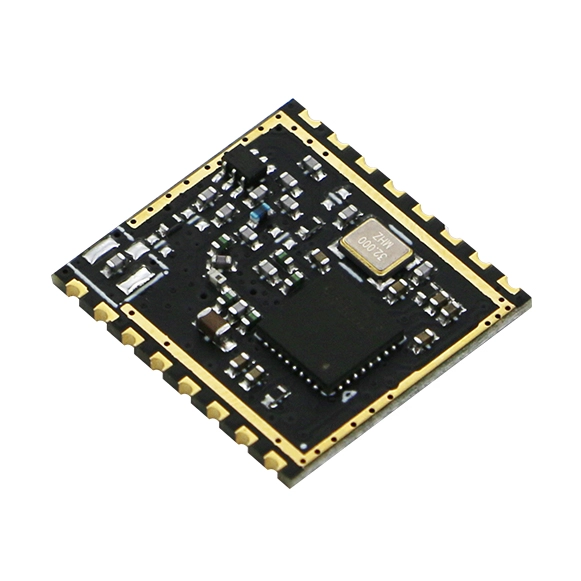

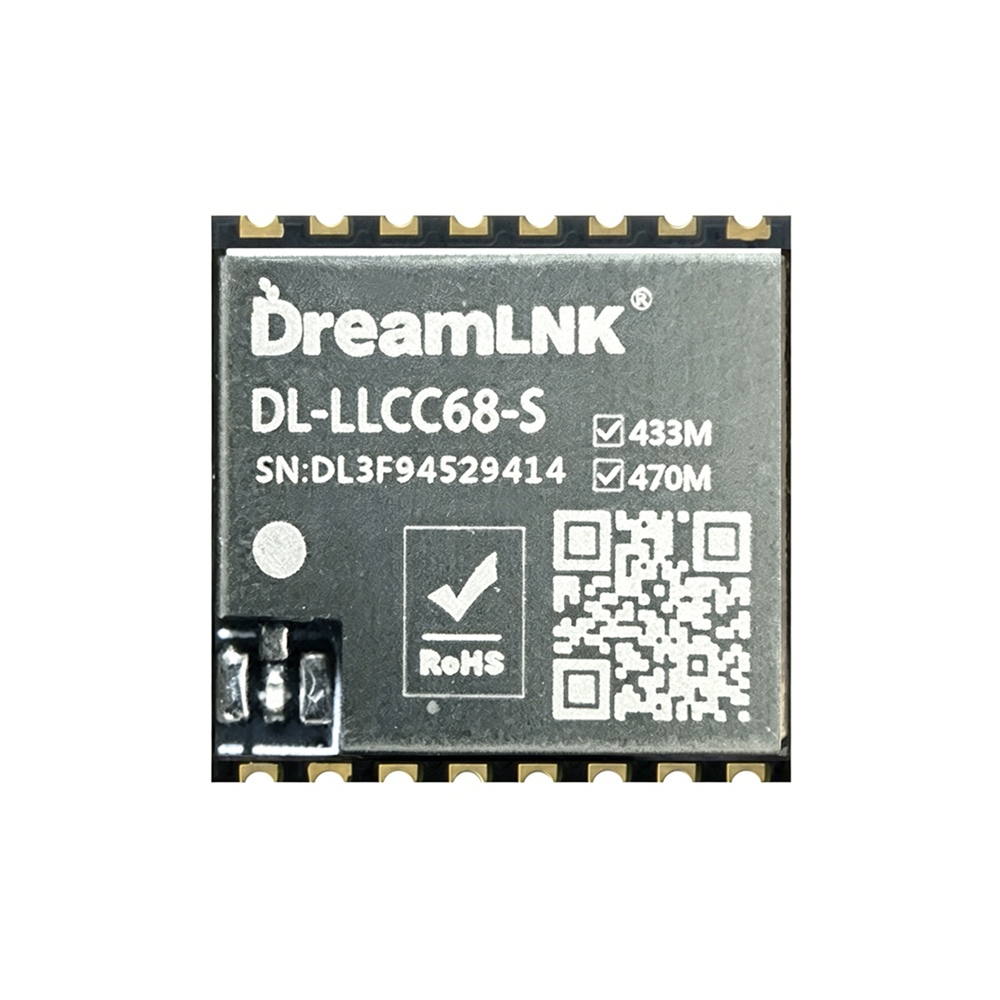

433MHz/868MHz/915MHz Wireless LoRa Transceiver Module with LLCC86 Chip
DL-LLCC68-S is a wireless module designed based on Semtech's radio frequency chip LLCC68. It mainly adopts a new generation of LoRa™ modulation technology for ultra-long-distance spread spectrum communication. This LoRa module is compact in size, and has the characteristics of ultra-low receiving power consumption, strong anti-interference ability, and longer transmission distance than traditional modulation methods. It can be widely used in various wireless communication fields of the Internet of Things.
DL-LLCC68-S RF module has high receiving sensitivity of -129dBm@LoRa, ultra-low receiving current and dormant current, the transmit power can be configured through software, and the maximum power can reach +22dBm. Compared with traditional modulation technology, LoRa™ modulation technology has obvious advantages in anti-blocking and selection, which solves the problem of distance, anti-interference and power consumption that traditional design schemes cannot take into account at the same time.
Applications
● ISM band data communication
● Intelligent buildings
● Smart home Security
● AMR (Automatic Message Recording)
● Wireless remote control
● Building automation
● Wireless sensor network
● Energy control and management
● RKE (Remote Keyless Entry)
● Thermal energy collection, meter measurement
Features
● Support (G)FSK, LoRa™ and other modulation methods;
● The chip supports a frequency range of 150~960MHz;
● Recommended frequency: 433/470MHz => 433M LoRa module; 868/915MHz => 868/915M LoRa module;
● The working voltage is 3.3V, the maximum output transmitting power is +22dBm, and the maximum working current is 130mA;
● It has low power consumption characteristics in the receiving state, the minimum receiving current is 4.5mA, and the standby current is 0.6mA;
● High receiving sensitivity: -129dBm@LoRa;
● Automatic Channel Activity Detection (CAD) with ultra-fast AFC
● Support spreading factor: SF5/SF6/SF7/SF8/SF9/SF10/SF11;
● Supported bandwidth: 125kHz, 250kHz, 500kHz
BW = 125kHz @ SF5-SF9
BW = 250kHz @ SF5-SF10
BW = 500kHz @ SF5-SF11
Download Center
DL-LLCC68-S Specification V1.3
Technical Parameter
Parameter | Min. | Typical | Max. | Unit | Remarks |
Operating conditions | |||||
Working voltage & IO voltage range | 1.8 | 3.3 | 3.7 | V | To ensure maximum chip power, stable voltage should ≥3.1V |
Working temperature range | -40 | 25 | 85 | ℃ | |
Current consumption | |||||
Receiving current | 4.5 | mA | Adopts CAD working mode, Can effectively reduce the overall working current | ||
Transmission current @433MHz | 110 70 45 | mA | @433MHz @ DCDC +22dBm +20dBm +17dbm | ||
Transmission current @868MHz @915MHz | 122 105 98 | mA | @868MHz @915MHz @DCDC +22dBm +20dBm +17dbm | ||
Standby current | 0.6 | uA | Save by register | ||
RF parameters | |||||
Recommended Frequency (Ensure best performance) | 300 | 433 | 510 | MHz | @433MHz |
800 | 868 | 915 | MHz | @868MHz | |
868 | 915 | 960 | MHz | @915MHz | |
Transmit power range | -9 | 22 | 22 | dBm | Table 13-40 in Data Sheet: SetTxParams SPI Transaction |
LoRa Receiving sensitivity | -129 | dBm | @BW =250KH, SF=10, CR =4/5 | ||
FSK Receiving sensitivity | -125 | dBm | @BR_F = 0.6 kb/s, FDA = 0.8 kHz, BW_F = 4 kHz | ||
FSK Rate range | 0.6 | 300 | Kb/s | ||
LoRa Rate range | 1.76 | 62.5 | Kb/s | Min. for SF9, BW_L = 125 kHz Max. for SF5, BW_L = 500 kHz | |
Pins Definition:
No | Definitions | Description | |
1 | ANT/NC | AI/AO | Antenna interface, 50Ω impedance, ground and via hole |
2 | GND | PWR | Reliable grounding |
3 | 3.3V | PWR | To maximize the chip function, 3.3V stable voltage is recommended |
4 | RESET | I | Reset to initialize the chip, for an increased stability. High level as defaulted, while low level to reset the chip |
5 | BUSY | O | The internal status indicator pin of the chip, which needs to be connected to the GPIO of the master MCU |
6 | DIO1 | IO | Digital I/O 1 port, Configurable via software |
7 | NC | No connection | |
8 | DIO3 | IO | Digital I/O 3 port, Configurable via software |
9 | GND | PWR | Reliable grounding |
10 | NC | No connection | |
11 | NC | No connection | |
12 | SCK | I | SPI Serial Clock Input |
13 | MISO | O | SPI Master Input Slave Output |
14 | MOSI | I | SPI Master Output Slave Input |
15 | NSS | I | SPI Chip Select Input |
16 | GND | PWR | Reliable grounding |

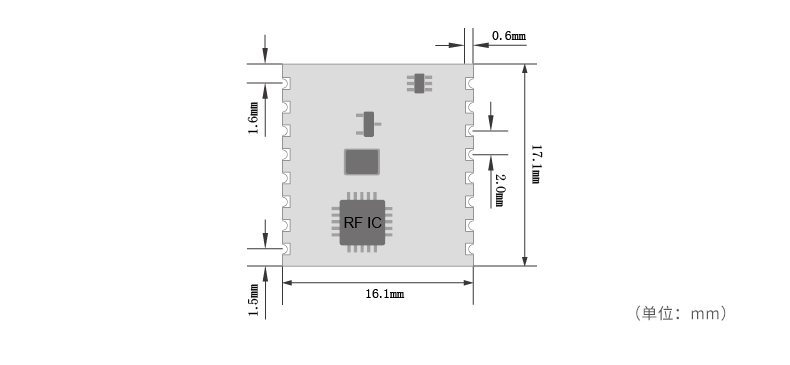

Product size:
