Switch Signal 4-Keys FSK Remote Controller

433/868/915 MHz Switch Signal 4-Keys FSK  Remote Control  R-E01-K4F

This remote control is available for 433/868/915MHz, and normally used together with our DL-A7149K8-RX switching control RF Receiver Module as a pair.

It can be widely used in remote meter reading, smart home, smart security, industrial control, smart agriculture, smart lighting, and new energy vehicle control systems, etc.

Note: special function (LED light / key value) can be customized, with a certain MOQ.

Indicator: defaulted as red light

Button: 4 Keys  Matching

Product: FSK Switching Control Receiver Module

Brief Introduction

Model: R-E01-K4F

Frequency: 433Mhz/868Mhz/915Mhz

Communication protocol: digital signal switching control ( high/low level )

TX Current: 107mA ±10

Sleep Current: 2.5uA

Power Supply: DC 3V CR2032 button battery

TX Power: +19dBm

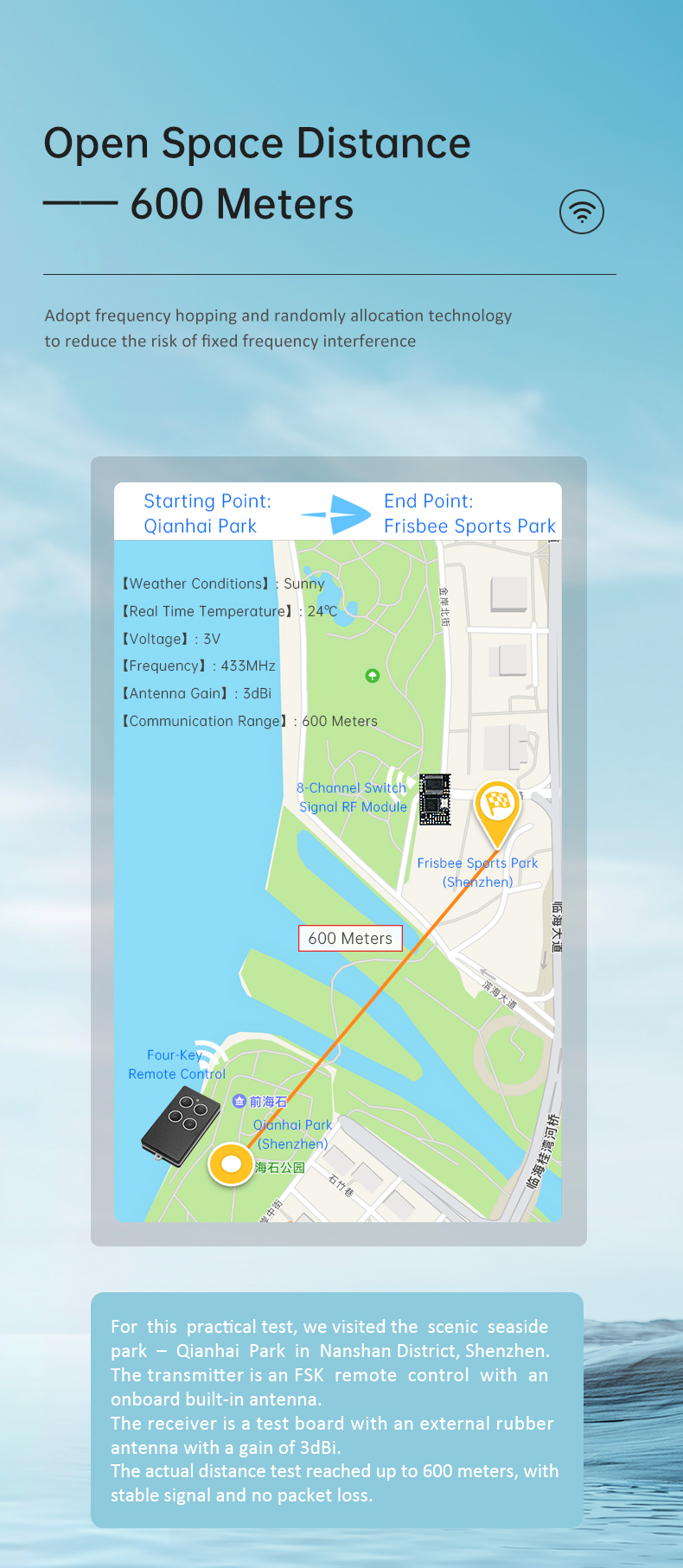

Communication Range: roughly 600m (open area)

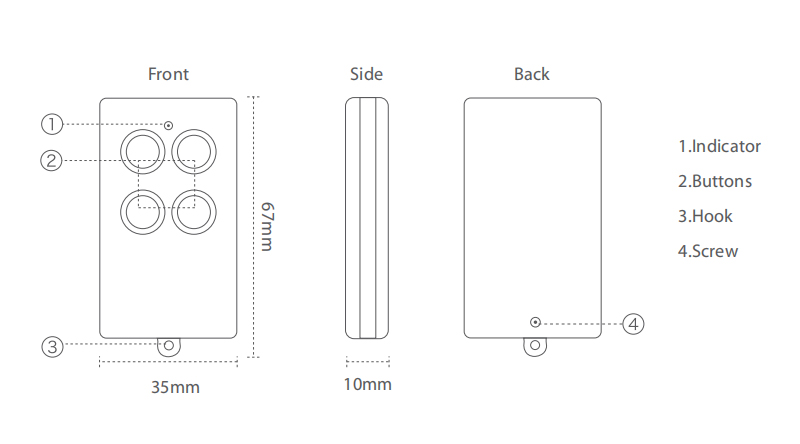

Size: 35*10*67mm

Download Center

R-E01-K4F Specification V1.0
