Switch Signal 8-Keys FSK Remote Controller

433/315 MHz 2/4/6/8 Keys Learning Code Remote Control, for access control & industrial control use
  • R-E02-K8F

  • DreamLNK/骏晔科技

  • R-E02-K8F

  • 433/868/915 MHz

  • Switch Signal

  • TX Power +19dBm

  • 2 * AAA battery

  • -

  • 600m

  • 38*14*118mm

Availability:
Quantity:

433/868/915 MHz Switch Signal 8-Keys FSK Remote Control R-E02-K8F


This remote control is available for 433/868/915MHz, and normally used together with our DL-A7149K8-RX Switching Signal RF Receiver Module as a pair.

It can be widely used in remote meter reading, smart home, smart security, industrial control, smart agriculture, smart lighting, and new energy vehicle control systems, etc.

Note: special function (LED light / key value) can be customized, with a certain MOQ.

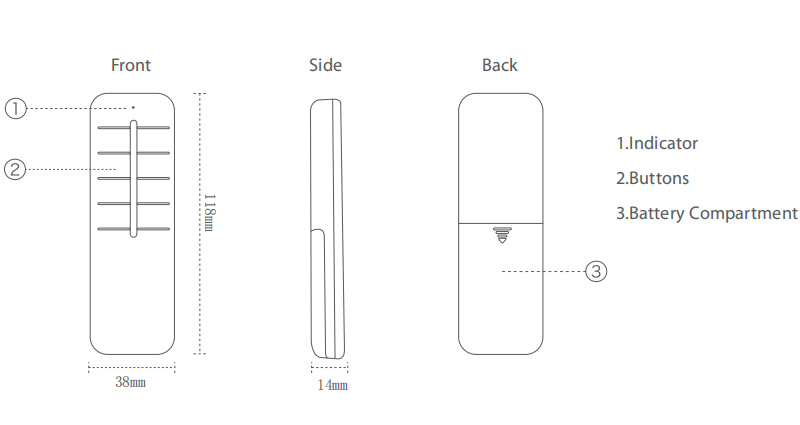

未标题-1_01_03

Indicator: defaulted as red light

Button: 8 Keys Matching

Product: FSK Switching Signal RF Receiver Module

DL-A7149K8 Switch Control Wireless Module (1)


Brief Introduction

Model: R-E02-K8F

Frequency: 433Mhz/868Mhz/915Mhz

Communication protocol: digital signal switching control ( high/low level )

TX Current: 107mA ±10

Sleep Current: 2.5uA

Power Supply: 2 * AAA battery

TX Power: +19dBm

Communication Range: roughly 600m (open area)

Size: 38*14*118mm


Download Center

R-E02-K8F Specification V1.0 do

Switch-Signal-8-Keys-FSK_01Switch-Signal-8-Keys-FSK_02

Switch-Signal-8-Keys-FSK_03Switch-Signal-8-Keys-FSK_05Switch-Signal-8-Keys-FSK_06Switch-Signal-8-Keys-FSK_07Switch-Signal-8-Keys-FSK_04
