DL-24N-S
2.4G-2.5Ghz
NRF24L01
-18~6dBm
1.9~3.6V
-89dBm
120m
19*12*2mm
| Quantity: | |
|---|---|

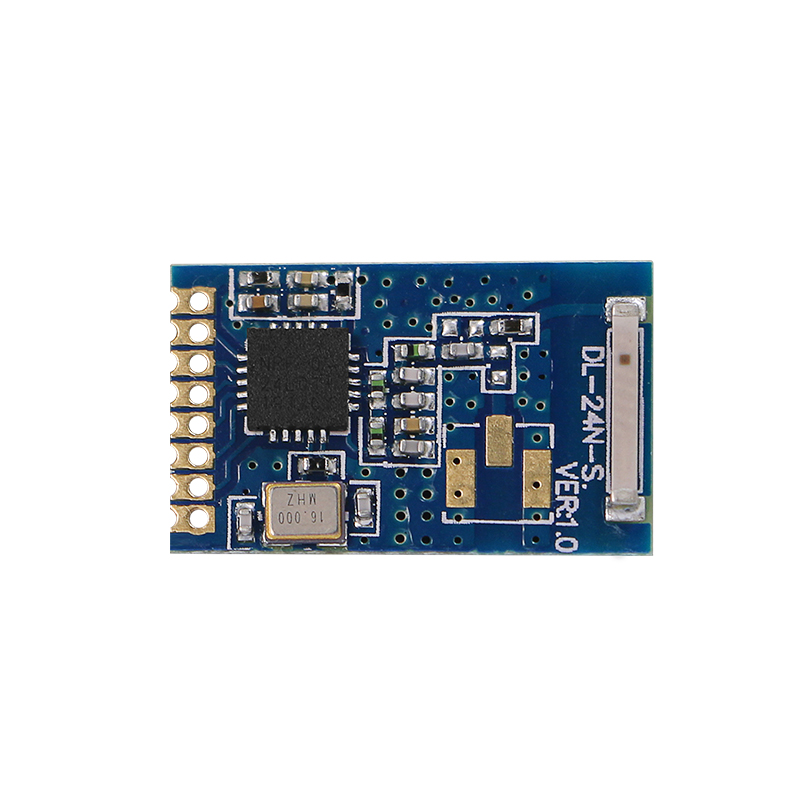

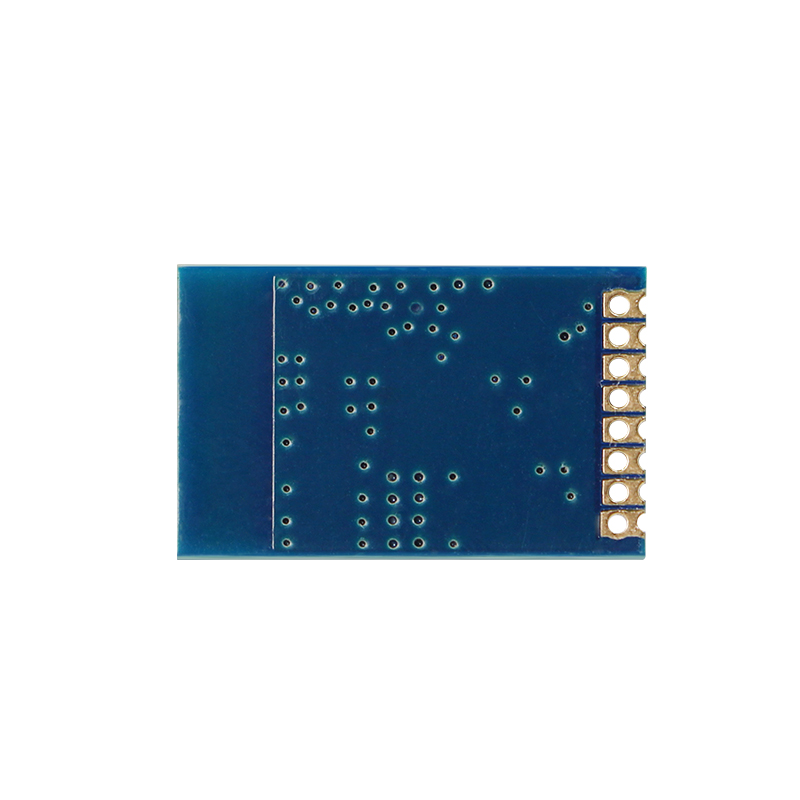

2.4G RF Transceiver Module with Ceramic Antenna
Module introduction
Based on Nordic's NRF24L01 wireless transceiver chip design, the DL-24N-S is a compact 2.4G wireless RF module with excellent performance and long distance. This 2.4G RF module is widely used in the fields of smart home, toy airplane model, and close-range data transmission control. The sensitivity can reach -82dbm@2M, the maximum transmission rate can reach 2Mbps, and the output power can be set in four steps from -20dbm to 0dbm through the register. The module integrates all RF-related functions. Users do not need to have a deep understanding of RF circuit design, they can use this module to easily develop stable and reliable wireless products, shortening the development cycle.
This RF module adopts the half-hole interface mode of the stamp side, which can not only meet the customer's SMT application, but also realize the horizontal and vertical welding through the pin row. Small size, easy to apply to portable products, and the module uses high-precision, high temperature stability of the crystal, the module has a very high cost performance, suitable for high-volume applications.
Applications
● Wireless game controller, toys
● Wireless keyboard and mouse
● Consumer electronics and toy airplane models
● Wireless voice and audio
● Data monitoring and transmission
● Smart home control
● Remote controller supporting radio frequency (RF) technology
Features
● Transmission distance: 120 meters in the open air @ 250KHz
● Working frequency 2400-2483MHz
● Working voltage: 1.9V-3.6V
● Programmable carrier detection, digital RSSI output
● Excellent selectivity and out-of-band isolation performance
● Using Immersion Gold PCB-ANT with extremely high cost performance
● Using 10ppm precision SMD crystal, excellent performance
24N Series Model Selection Guide:
| Model | Specification | Feature |
| DL-24N | A：PCB On-board antenna | On-board antenna, lower cost |
| DL-24N-S | S：SMD Ceramic antenna | Small size antenna, high performance |
| DL-24N-I | I：IPEX connector base | Can be connected with various kinds of 2.4g antennas |
| DL-24NPA | PA: RF power amplifier chip | High output power up to 20dBm |
Download Center
DL-24N-S Specification V1.0
Technical Parameter
DC characteristics
| Description | Min. | Max. | Unit |
| Voltage | 1.9 | 3.6 | V |
Operating current | 11.3mA@0dbm | 13.5mA@2Mbps | mA |
Stand-by current | 26uA@Standby Mode | 0.9uA@Powerdown | uA |
| IO port voltage | Vss-0.3 | Vdd+0.3 | V |
| Operating temperature | -40 | +85 | ℃ |
Radio frequency characteristics (Unless otherwise stated, temperature 25 ℃, VCC 3.3V)
| No | Parameter | Reference Value Min.-Typ.-Max. | Unit |
| 1 | Working frequency | 2400,—，2483.5 | MHz |
| 2 | Frequency interval | —,100K,— | Hz |
| 3 | Output Power | -18,-12,-6 | dBm |
| 4 | Receive sensitivity | —,-82,— | dBm |
| 5 | Modulation | —,GFSK,— | MSK |
| 6 | Transmission rate | 1.2,—,2000 | Kbps |
| 7 | Harmonic power | -48,—,-45 | dBm |
| 8 | Communication distance | 80,—,120 | M |
| 9 | Sensitivity at 2.4K | —,-95,— | dBm |
| 10 | Sleep power consumption | —,—,0.9 | uA |
| 11 | Crystal accuracy | —,10,— | PPM |
Pin Definitions
| Pin No | Pin’s Name | Description |
| 1 | VDD | Positive power supply, 1.9~3.6V |
| 2 | CE | Work mode selection, TX or RX mode selection |
| 3 | CSN | CSN=0 valid, SPI chip select enable |
| 4 | SCLK | SPI clock |
| 5 | MOSI | SPI data input, MOSI |
| 6 | MISO | SPI data output, MISO |
| 7 | IRQ | Interrupt request port |
| 8 | GND | Module grounding，Reliably grounded and close to the system filter capacitor |
| ANT | PCB | PCB onboard antenna |
Size
DreamLNK can provide different kinds of RF modules (Sensors for IoT application), include SOC embedded data transmission modules, intelligent IoT modules, industrial control data transmission modules, such as 2.4G RF module, UART serial module, Lora module, FSK module, ASK Module, Bluetooth module, WiFi module, etc. Welcome to inquire!
