50Ω
DL-F3-2.4G
2.4~2.5GHz
IPEX I/II/III
1W
N/M
-40 ~ +85℃
47.7*8*0.1mm;Line length 42±3mm
| Quantity: | |
|---|---|

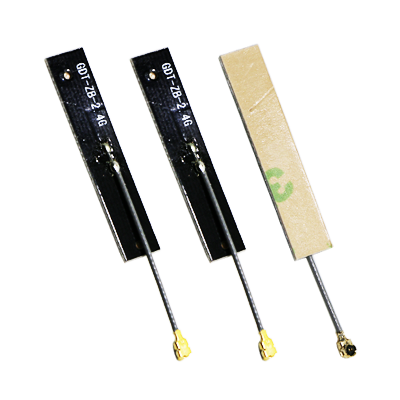

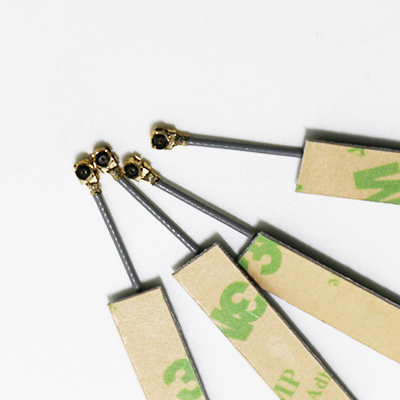

2400~2500MHz FPC Antenna with High Gain (2 dBi)
Antenna introduction:
2.4G FPC Antenna is in the 2.4~2.5GHz frequency band, and can be adjusted for 2G/3G/4G/5G use , frequency range 400MHz~6.5GHz use, please contact us for more details, if you need to do any customization. The current connector uses SMA pure copper with gold-plated, with upmarket appearance, strong mechanical sense, and high gain 2dBi, while the daily output of this antenna can reach 5K sets. We can customize the packaging, antenna size, as well as design style according to your requirements, welcome to inquire!
The structure is simple, lightweight, wide frequency, high gain, and easy to install. Can be customized and designed according to your special needs.
For 2G/3G/4G/5G use , frequency range 400MHz~6.5GHz
The copper foil of the FPC antenna usually uses electrolytic copper or rolled copper, and the thinner the overall thickness is, the less likely to lift. The backside adhesive has strong adhesive properties and high temperature resistance. They arewidely used in mobile phones, locomotives, Internet, artificial intelligence, smart home, smart city, intelligent agriculture,IoT industry and other fields.
Download Center
Antenna characteristics:
● High gain
● Strong compati bility
● Good stability
Application field：
● Smart Express Cabinet
● Security alarm
● Smart buildings, smart buildings
● Smart home
● Power monitoring
● Smart Industry
● Traffic monitoring equipment
● Smart Agriculture
●Temperature and humidity monitor
● Drone
● Medical automation
● Wireless module
Electrical test report:
| Frequency | 2400~2500MHz |
| Impedance | 50Ω |
| V.S.W.R | ≦2 |
| Return loss | 135/46MHz |
| Gain | 2dBi |
| Linear polarization | vertical |
| Power | 1W |
| Connector | IPEX |
| Operating temperature | -10 ~ 70 ° C |
| Storage temperature | -40 ~ +85℃ |
Passive data( VSWR 、 Return loss 、Smith ):
