50Ω
DL-J003
315/433/470/868/915MHz
N/M
1W
N/M
N/M
196*13mm
| Quantity: | |
|---|---|

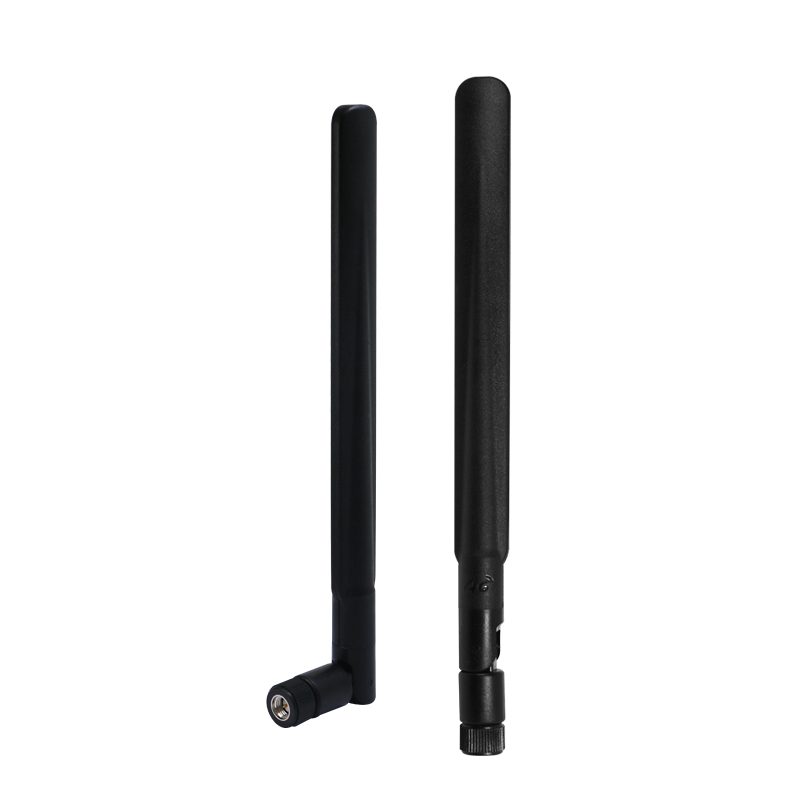

315/433/470/868/915MHz Rubber Rod Antenna with High Gain (2 dBi)
Antenna introduction:
DL-J003 rubber rod antenna is in the 433MHz frequency band, and can be adjusted for 315MHz / 433.92MHz / GSM / GPRS / 3G use, please contact us for more details, if you need to do any customization. The current connector uses SMA pure copper with gold-plated, with upmarket appearance, strong mechanical sense, and high gain 5dBi, while the daily output of this antenna can reach 5K sets. We can customize the packaging, antenna size, as well as design style according to your requirements, welcome to inquire!
Fixed straight head, fixed elbow and bendable design, suitable for wireless LAN, wireless video, smart home, smart city, intelligent agriculture, wireless router, wireless meter reading, MID, DVB, digital TV, wireless camera, smart grid, Internet of Vehicles , wireless industrial control and monitoring , ZigBee technology wireless field , Internet of Things sectors , Wireless data transmission , etc. It has the advantages of wide frequency bandwidth , small standing wave ratio and good consistency.
Antenna characteristics:
● High gain
● Strong compatibility
● Good stability
Application field：
● Smart Express Cabinet
● Security alarm
● Smart buildings, smart buildings
● Smart home
● Power monitoring
● Smart Industry
● Traffic monitoring equipment
● Smart Agriculture
●Temperature and humidity monitor
● Drone
● Medical automation
● Wireless module
Electrical test report:
| Frequency | 315/433/470/868/915MHz |
| Impedance | 50Ω |
| V.S.W.R | Maximum S.W.R 1.92: 1 |
| Return loss | -10dB |
| Gain | 2dBi |
| Linear polarization | vertical |
| Power | 1W |
| Connector | SMA |
| Operating temperature | -10 ~ 60 ° C |
| Storage temperature | -10 ~ 70 ° C |
Download Center
DL-J003 Specification V1.0
