DL-B433W-001
DreamLNK
DL-B433W-001
433MHz
D20*610mm±5mm
| Quantity: | |
|---|---|

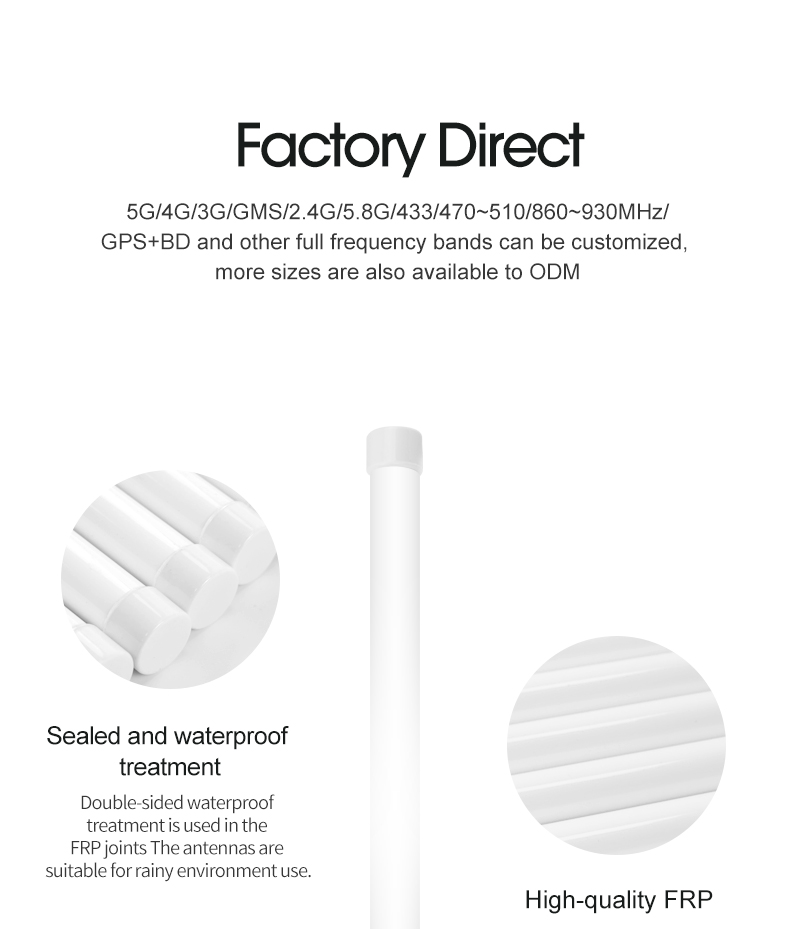

433MHz Fiberglass (FRP) Antenna, high gain, low VSWR (Voltage Standing Wave Ratio), eco-friendly material, factory direct, stable supply, affordable price. The size, gain and color can be customized according to your requirements. Welcome to inquire!
Production Process of Fiberglass Antenna:

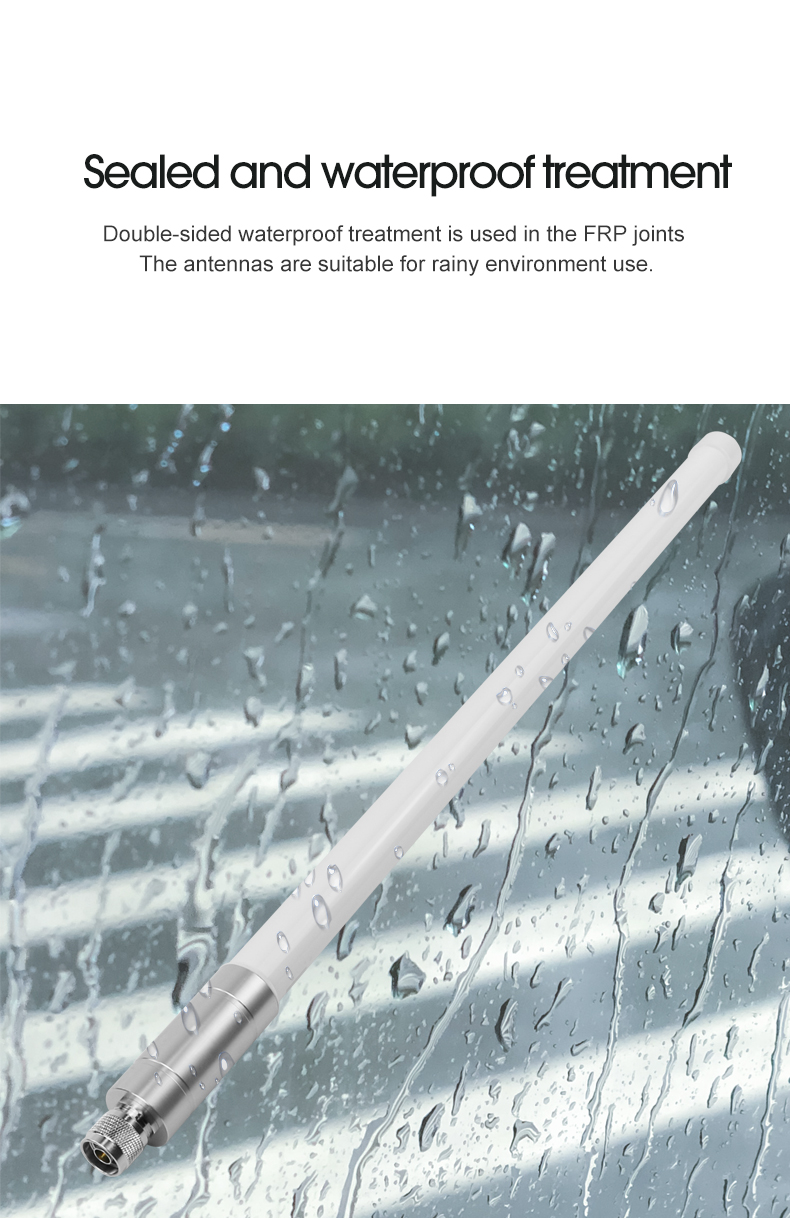

The Fiberglass (FRP) Antenna adopts the film pressure technology under high temperature and high pressure. Its material characteristics and processing technology determine that the Fiberglass Antenna has unparalleled consistency than other antennas. It has the following significant advantages: no deformation, waterproof, windproof, heat resistance, corrosion resistance, and strong sealing. So, the lifespan is generally more than ten years and can still work normally. It is easy installation, and also has good compatibility, stable signal, and wide application.
Production Process of Fiberglass Antenna:

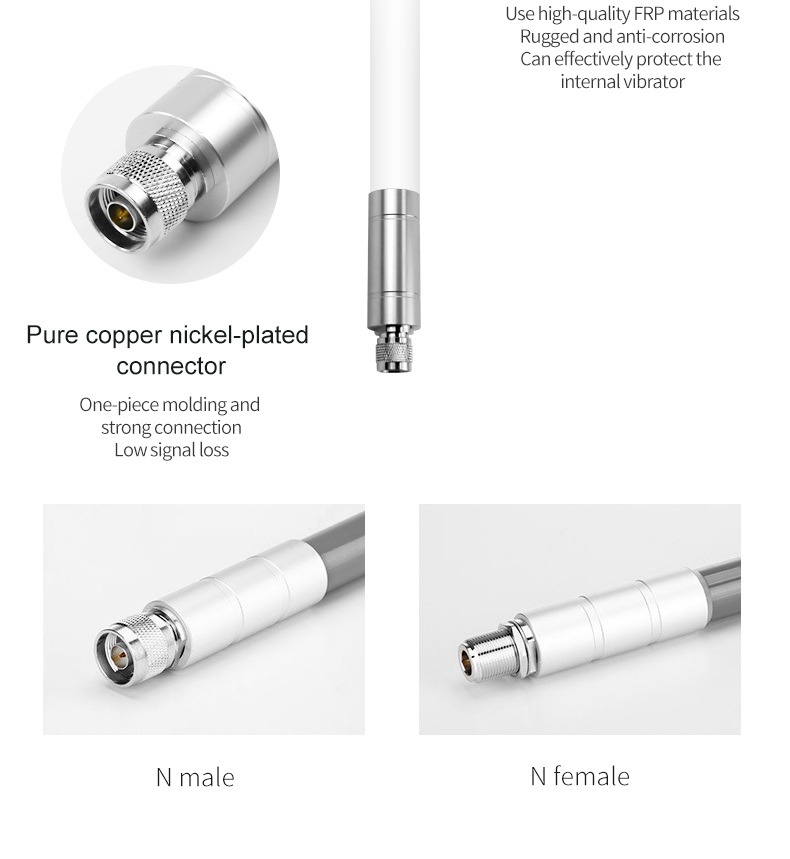

The Fiberglass Antenna includes an antenna shell, an antenna cap, a base, an N-shaped male head, a radio frequency coaxial cable, a vibrator base, and a vibrator. The base and the N-shaped male head are matched and connected together, and the vibrator is fixedly installed inside the antenna shell and is in a straight line. In the arrangement, the vibrators are connected together by the vibrator base, one end of the radio frequency coaxial cable is fixed in the interior of the vibrator, the radio frequency coaxial cable passes through the vibrator base and the other end is fixed together with the N-shaped male connector.
The Fiberglass Antenna includes an antenna shell, an antenna cap, a base, an N-shaped male head, a radio frequency coaxial cable, a vibrator base, and a vibrator. The base and the N-shaped male head are matched and connected together, and the vibrator is fixedly installed inside the antenna shell and is in a straight line. In the arrangement, the vibrators are connected together by the vibrator base, one end of the radio frequency coaxial cable is fixed in the interior of the vibrator, the radio frequency coaxial cable passes through the vibrator base and the other end is fixed together with the N-shaped male connector.
The Fiberglass Antenna keeps the RF coaxial cable straight by adjusting the N-shaped male head, and then makes the vibrator base and the vibrator in a straightened state, so that after the Fiberglass Antenna is assembled to the SMC antenna reflection surface, the overall reflection surface root mean square value is less than 0.6mm, which will ensure the accuracy and high gain of the fiberglass antenna.
Download Center
DL-B433W-001 Specification V1.0
Parameters
Product Name | Fiber-glass Antenna | Model No | DL-B433W-001 |
Frequency | 433MHz | Radiation pattern | Omni-directional |
Gain | 5 dBi | Polarization | Linear/Vertical |
Size | D20*610mm±5mm | Max Input Power | 20W |
Connector | N - Male | Horizontal Beamwidth | 360° |
| Working Temperature | -40℃~+75℃ | Salt Spray Test | 48H |
| Storage Temperature | -40℃~+75℃ | Relative Humidity | 40~85% |

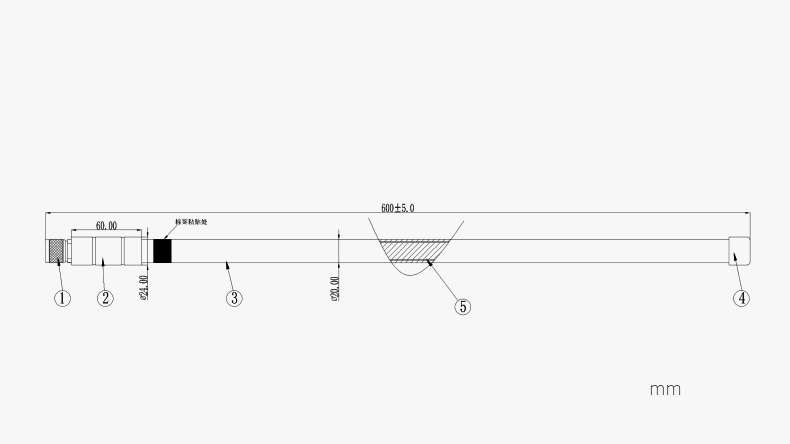

Size
DreamLNK is a professional high-tech enterprise specializing in ISM band micro-power wireless communication technology, can provide you various RF modules and one-stop intelligent IOT solution! Products include 433MHz RF modules, 2.4G RF modules, Bluetooth modules, Lora modules, Antennas, Remote control, Door/windows sensors, Smoke detectors, etc. welcome to inquire!
