DreamLNK/骏晔
50Ω
DL-X012-470M
470-860MHz
50W
N/M
5dBi Gain
-40~+85℃
2000±1mm
| Quantity: | |
|---|---|

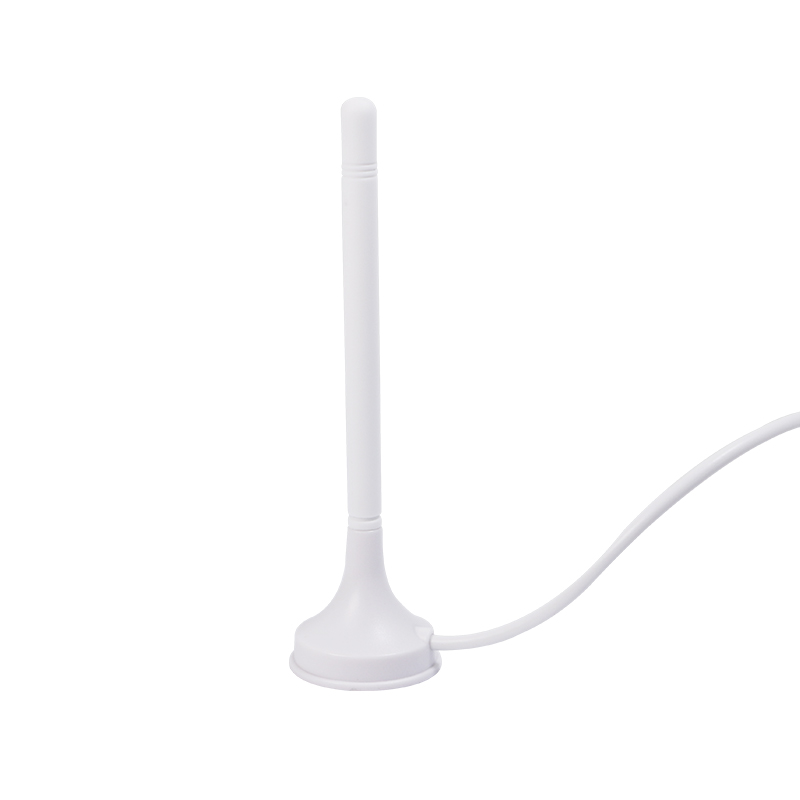

Magnetic Base Whip Antenna with High Gain (5dBi)
This X012 Magnetic Base Whip Antenna works in the 470-860MHz frequency band, and can be adjusted for 433/ 315/ 470/ 868/ 915MHz/ GSM/ CDMA/ GPRS/ 2G/ 2.4G/ 3G/ 4G/ 5.8G use, please contact us for more details, if you need to do any customization. The current connector uses SMA pure copper with gold-plated, with upmarket appearance, strong mechanical sense, and high gain 5dBi, while the daily output of this antenna can reach 5K sets. We can customize the packaging, antenna size, as well as design style according to your requirements, welcome to inquire!
It is made of special stainless-steel spring wire with good elasticity. Bottom anti-collision treatment, with magnet inside and antenna grounding material, can be installed to a better signal receiving position through an extension cable. The specifications of the wire and connector can be flexibly selected. The fixing methods include magnetic suction / adhesive / vacuum suction / screw buckle.
It is widely used in smart PDA, wireless POS machine, smart home, wireless router, wireless meter reading, MID, DVB, digital TV, wireless camera, smart grid, Internet of Vehicles, wireless industrial control and monitoring, ZigBee technology wireless field, Internet of Things sectors, Wireless data transmission, wireless broadcast TV, etc.
Antenna characteristics:
● High gain
● Strong compati bility
● Good stability
Download Center
Application field：
● Smart Express Cabinet
● Security alarm
● Smart buildings, smart buildings
● Smart home
● Power monitoring
● Smart Industry
● Traffic monitoring equipment
● Smart Agriculture
● Temperature and humidity monitor
● Drone
● Medical automation
● Wireless module
Electrical test report:
| Frequency | 470-860MHz |
| Impedance | 50Ω |
| V.S.W.R | ≦2.0 |
| Return loss | 135/46MHz |
| Gain | 5dBi |
| Linear polarization | Vertical |
| Power | 20W |
| Connector | SMA |
| Operating temperature | -10 ~ 60 ° C |
| Relative Humidity | 40~85% |
