DreamLNK
50Ω
DL-P76-4G-02
700-960/1710-2700MHz
10W
40*15mm
| Quantity: | |
|---|---|

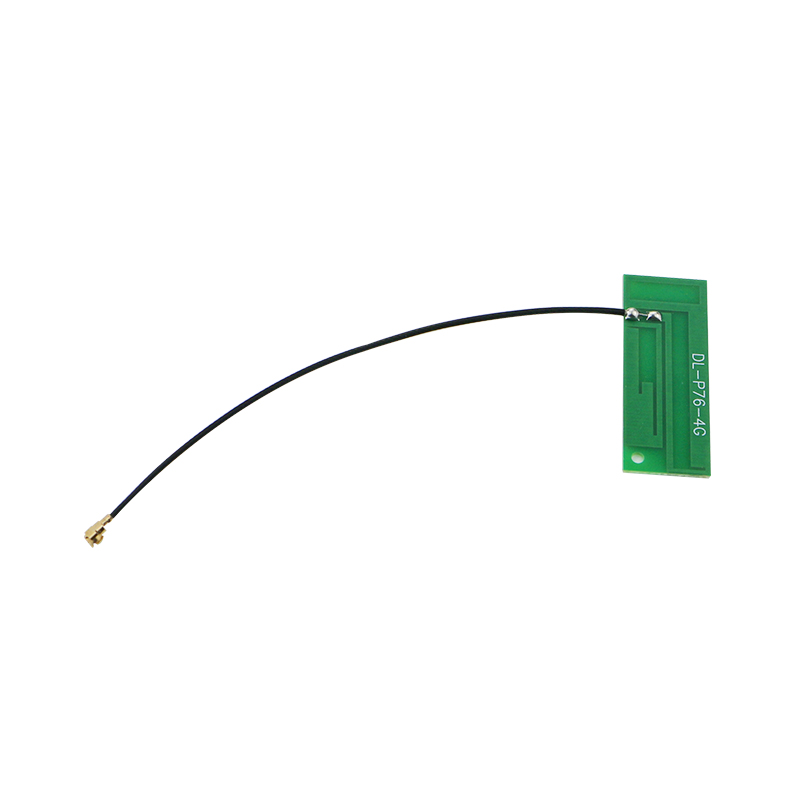

700~960/1710~2700MHz 4G PCB Antenna with 1.13mm RF Coaxial Cable & IPEX-1 Connector
Antenna Introduction:
DL-P76-4G is a PCB built-in antenna available at 700-960/1710-2700MHz frequency band, which can be used for a 4G/LTE wireless module, 4G wireless communication application and other products.
It has defaulted 3M sticker, with compact size (40*15mm PCB + coaxial cable of 100mm) and IPEX-1 connector, can be built into your product simply, with fast installation, strong signal, high sensitivity, long transmission range, high gain, and reliable performance.
Antenna Characteristics:

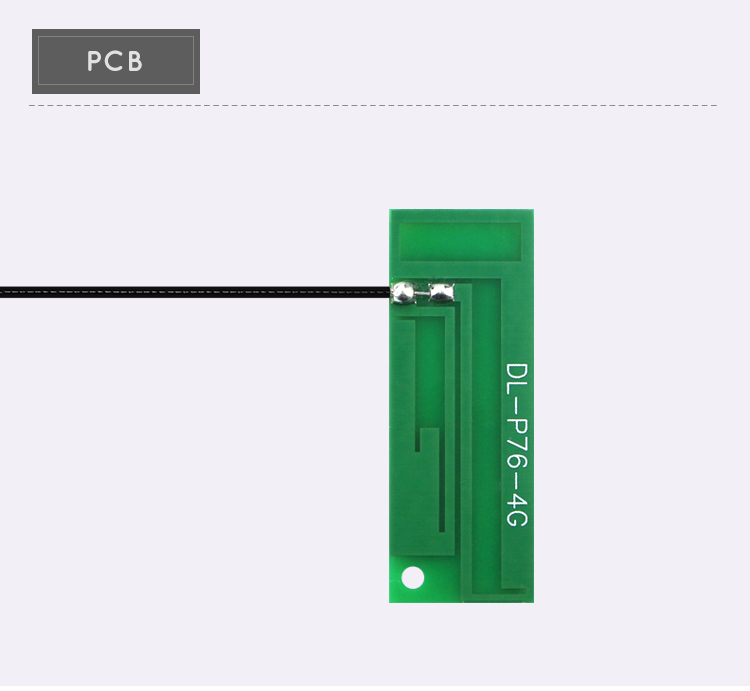

● It is a PCB antenna with hard board, slightly thicker than FPC antenna, and much stronger, can be easily pasted on a plane cover;
● RG1.13 coaxial cable: soft and folding resistant, high-density braided shielding layer oxygen-free core, fast transmission, stable signal, low power consumption, low return loss;

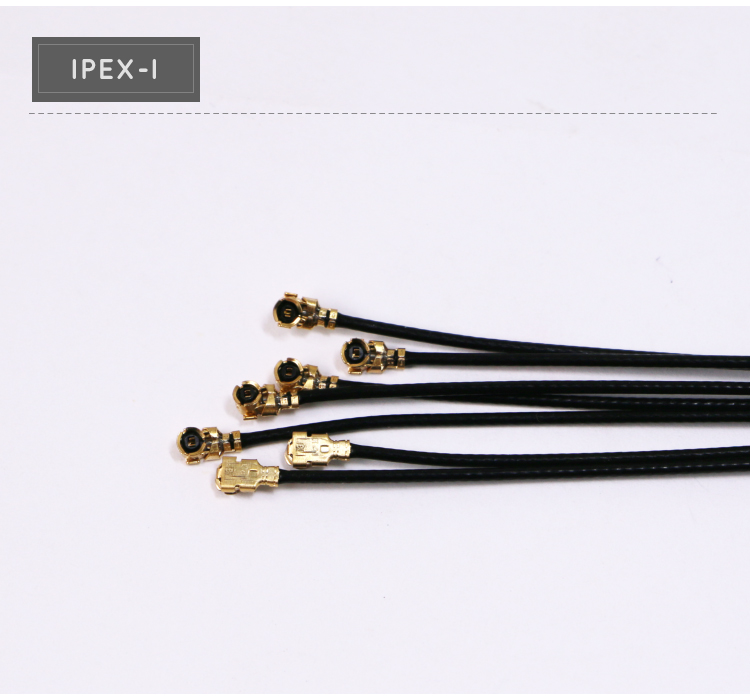

● Standard IPEX-1 connector: international standard, rigorous process, IPEX/welding joint both available;
● Customizable: the coaxial cable length can be customized according to your needs, even the connector type;
● Reasonable price, fast delivery, high-quality, and eco-friendly materials.
Application Field：
It can be widely used in internet, artificial intelligence, smart home, smart city, smart agriculture, smart industry, smart security, smart transportation and other fields.
Application products: 4G router, GPRS/3G/4G wireless module, vending machine, advertising machine, charging pile, queuing machine, code scanning machine, doll clip machine, coin operated game machine, intelligent monitoring, traffic monitoring equipment, ticket vending machine, and other IoT equipment.
Electrical test report:
| Product name | PCB Built-in Antenna |
| Model Type | DL-P76-4G-02 |
| Frequency Range | 700-960/1710-2700MHZ |
| Band Width | 260/990MHZ |
| Vswr | <2.0 |
| Gain | 2.5dBi |
| Impedance | 50 OHM |
| Polarization | Horizontal polarization |
| Radiation | OMNIDIRECTIONAL |
| Max power | 10 W |
| CABLE | RF-1.13-L=100MM |
| Connector | IPEX-1 |
| Dimensions | 40*15mm |
| Temperature | -35~85 ° C |
| Lighting protection | DC grounding |
Download Center
DL-P76-4G-02 Specification V1.0

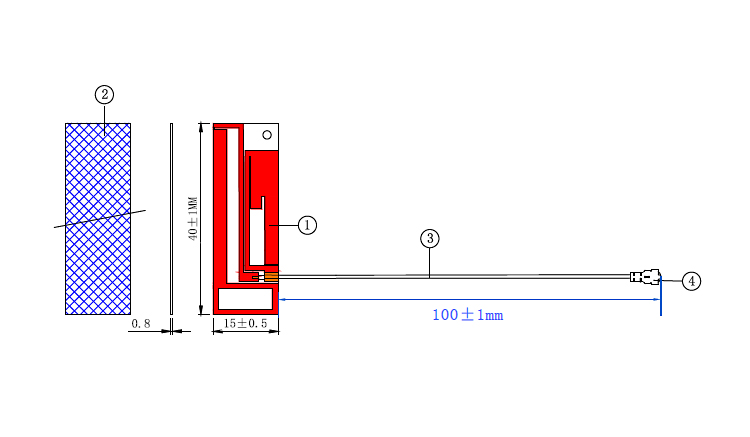

Size:
Passive data( VSWR 、 Return loss 、Smith ):
