M-AF119M
433MHz/315MHz
1.8V-3.6V
200~350m
| Quantity: | |
|---|---|

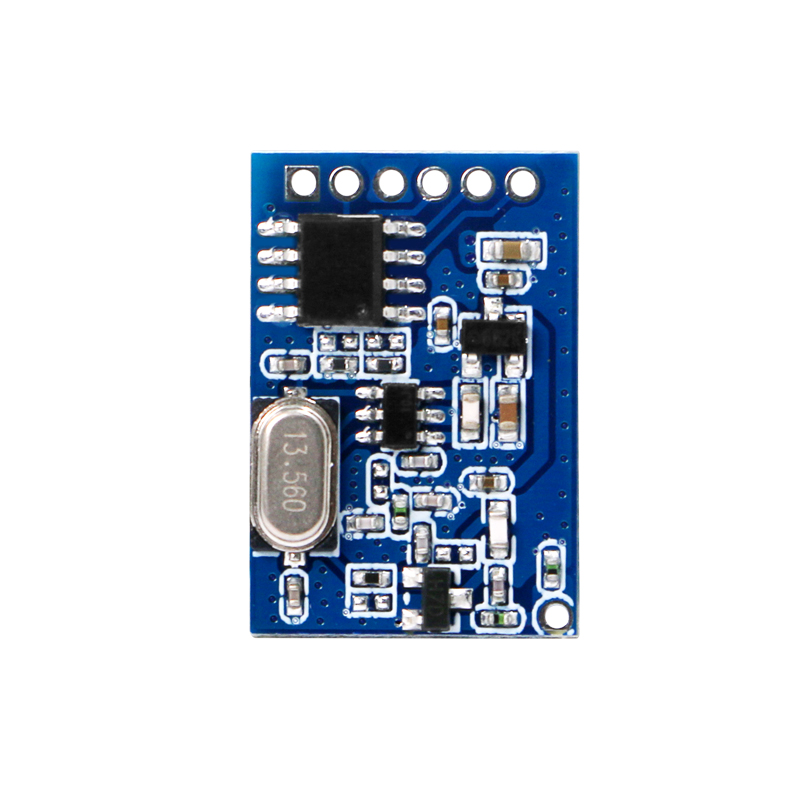

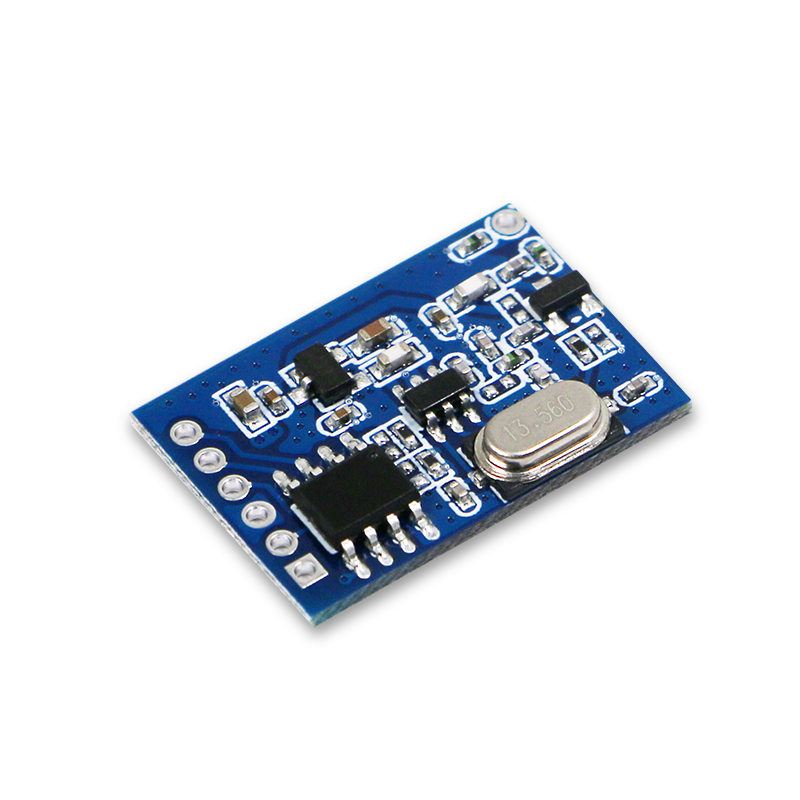

433M/315M Discrete ASK Transmitter Module (other frequencies need to be customized)
M-AF119M is a wireless module designed based on a high-performance superheterodyne wireless transmitter chip. It is a high-power, low-cost, small size, and coded (1527 million sets of learning codes) superheterodyne wireless transmitter module, which integrates cost-effective wireless data Transmitting chip and low-power MCU with excellent performance.
This wireless module has industry-standard transmission power and frequency stability, the data encoding rate is default 2K, transmitting cycle can be customized, and can be used with our low-power RF receiving module, which can replace the 1527 encoding remote control.
The transmitting working current is 8mA@12dBm. The high-power version can be customized. The transmitter chip adopts SOT23-6 package and supports 3 buttons (or pulse signal). To provide you the best wireless RF solution, the radio frequency communication protocol, transmission rate, carrier frequency, number of buttons, also can be customized according to your requirement.
Features
● Power: +12dBm, +22dBm can be customized (2kbps);
● Working frequency: 433.92M (other frequencies need to be customized)
● Working voltage: 1.8V-3.6V
● Transmission Rate (Symbol Rate): 0.5~40K
● Communication distance: 200~350m
● The transmitting cycle can be customized according to the power consumption of the receiver
● The interface adopts 3-channel inputs, local control (key signal trigger) or pulse signal (sensor signal trigger) both available;
● Standard COMS interface control and decoded data output
Download Center
M-AF119M/PA Specification V1.0
Technical Parameter
| No | Characteristics | Technical Parameter Min . Max. | Unit |
| 1 | Voltage | 1.8~3.6V | V |
| 2 | Working current | 15mA@10dBm；56mA@22dBm Peak | Instantaneous current |
| 3 | Sleep standby | 1uA~5uA | uA |
| 4 | ESD range | -2~2 | KV |
| 5 | Operating temperature | -20~75 | ℃ |
Pins Definition and Product Size:
| Pin | Name | Description | Remark |
| 1 | ANT | Antenna input, single core copper wire 0.8mm (Aperture 0.85mm) is recommended | 17-24cm length is recommended |
| 2 | VDD | Power supply 1.8-3.6V (reserved LDO can be customized 5V version) | 662K-LDO |
| 3 | DATA | Data pin, low level trigger pulse trigger | can be customized |
| 4 | GND | Grounding, common ground with the system | Strong current isolation |
| 5 | DATA-12 | Data pin 1, low level trigger pulse trigger | |
| 6 | DATA-2 | Encoding time, normal is low (data lasts until key is released), pull up to change as 1.5s continuously sending | Customizable as a data port |
| 7 | DATA-3 | Data pin 3, low level trigger pulse trigger | can be customized |
Typical application
Wireless Data Communication, Wireless Data Monitoring and Transmission, Wireless Voice/Audio Transmission, Wireless Sensoring; Wireless Remote Control System; Wireless Game Controller, Remote Control Toys; Wireless remote control for electronic consumer products; Wireless Alarm & Security Control System; Wireless Sensor Networking, Automatic Data Collection; Industrial Remote Control, Intelligent Control System, Home Automation, Home Appliance Control, Building and Residential (smart home) Control, Smart City, RFID (radio frequency identification); Telemetry, Automatic (Water, Electricity, Gas) Meter Reading system; Remote control that supports radio frequency (RF) technology
