DreamLNK
DL-F21-5-TXM1 / DL-F21-5-RXM1
915 MHz
1527 Learning Code
12mA
DC12V, 23A
-120dBm
400m
110* 37*15mm
| Quantity: | |
|---|---|
915Mhz FSK Modulation Wireless Industrial Remote Control Solutions

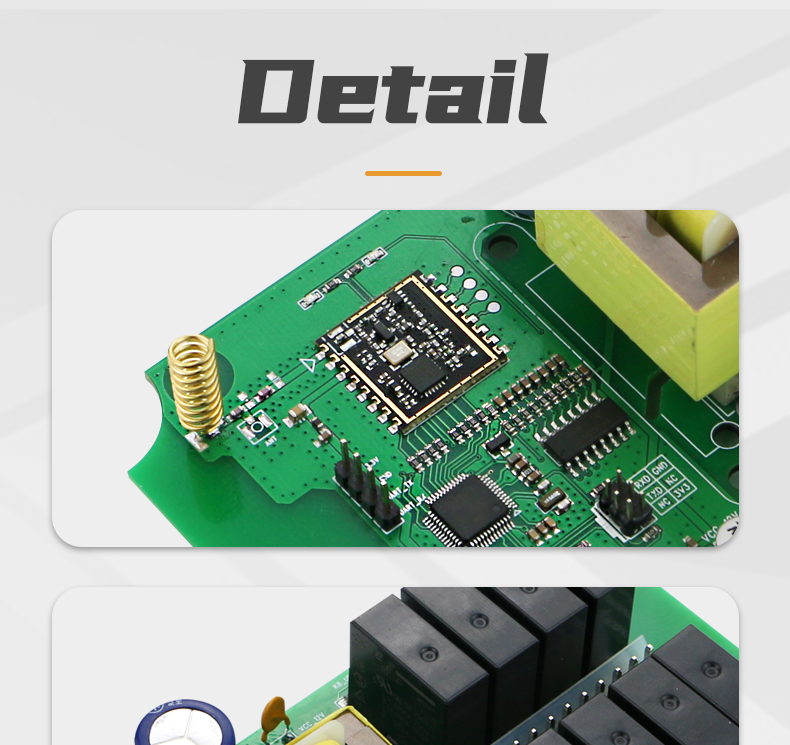

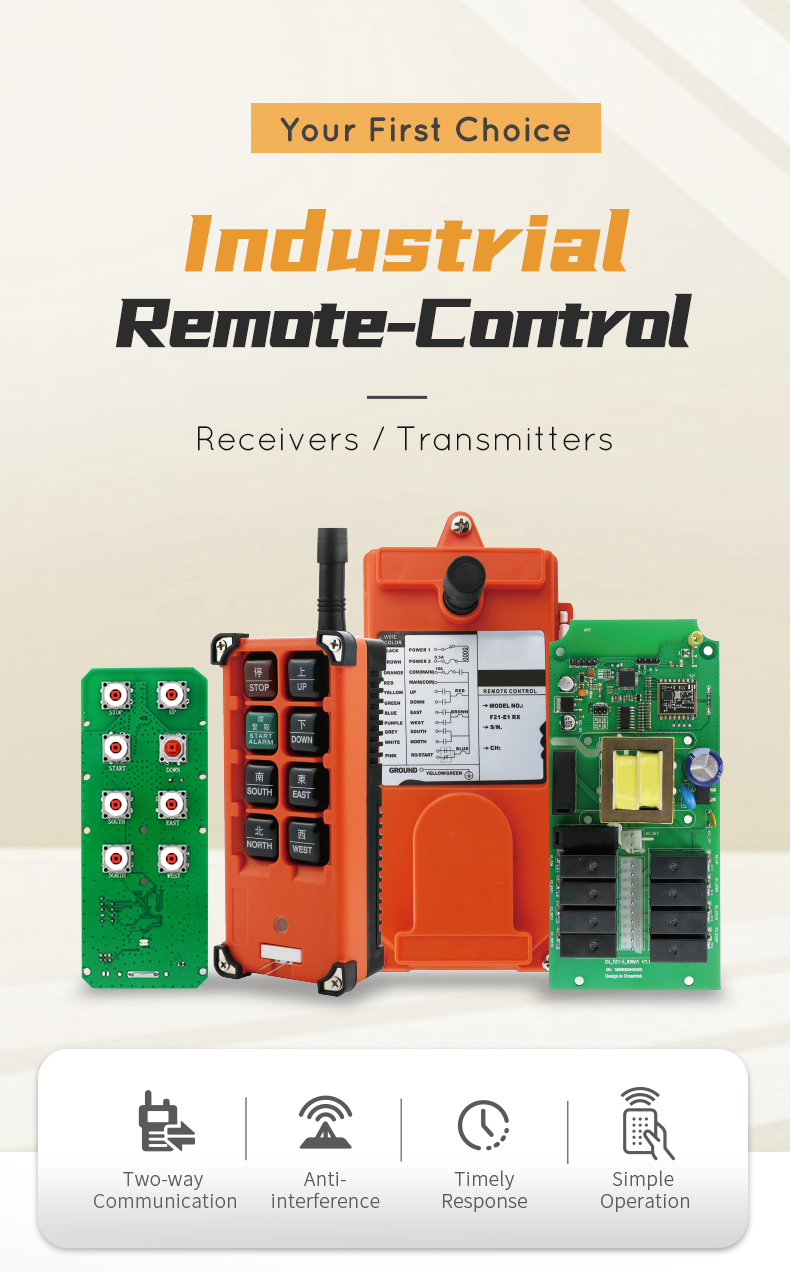

This Industrial Remote Control and Receiving Solutions were special designed for IIoT (Industrial Internet of Things) applications. We have a set of Remote Control (transmitter) & Receiver PCBA with mature software solution for any potential demand, especially these who have their own Remote Control cover. It can be also ODM base on this system, according to your specified requirement.
This 915Mhz FSK Modulation Industrial Remote Control and Receiving Solutions were special designed for IIoT (Industrial Internet of Things) applications. With the help of this wireless remote-control system and ready PCBA, you can hold the portable transmitter (with your own cover), walk freely and choose the best location for remote operation, which can greatly improve the safety and reduce accidents such as work-related injuries. The operator can complete multiple tasks independently, which can greatly improves their work efficiency, and save your labor input.
Application Areas: lifting equipment, construction machinery, metallurgical industry, automobile industry, mobile/conveying equipment, gate control system, port terminals, etc.
Features
● Stable communication, sensitive response, strong anti-interference
● 160mW maximum transmit power, greatly improves the communication distance
● 0.5~160mW, 25-levels power automatic adjustment

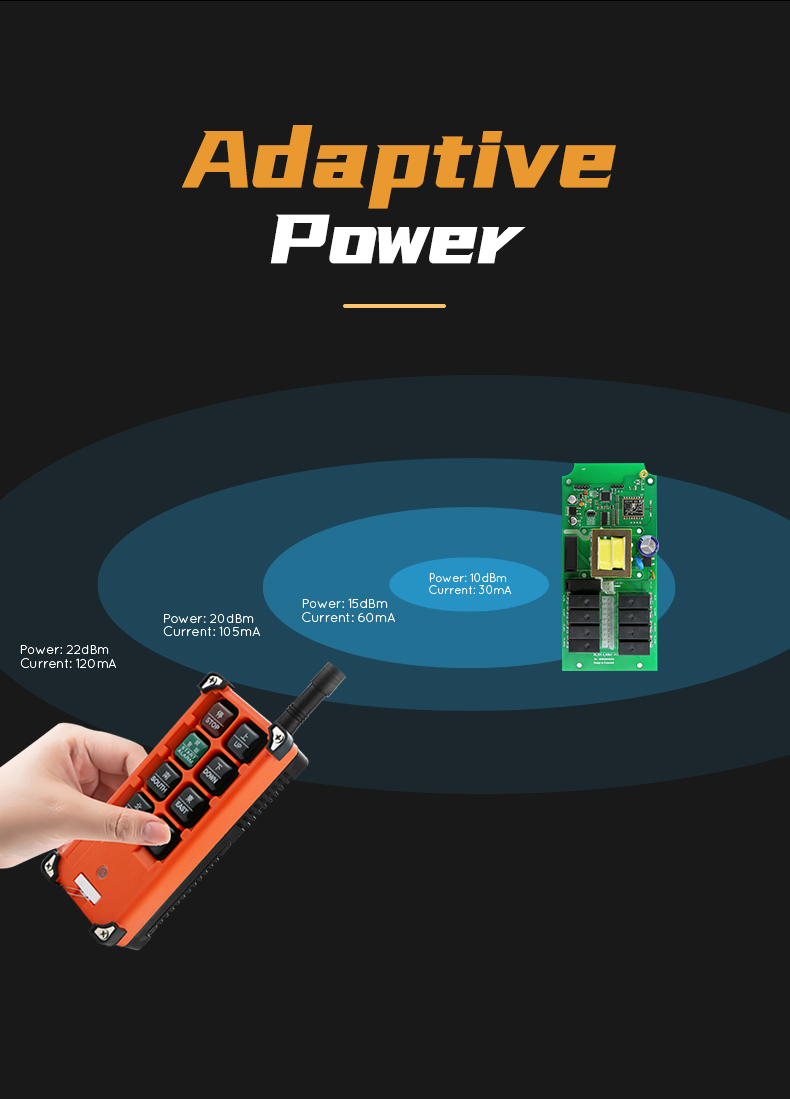

● Adaptive transmit power according to communication distance, for longer battery life
● Feedback the working status of the receiver through RGB lights
● Low battery alarm
● Ultra-low sleep current
● Antennas are well-matched and optimized for high efficiency

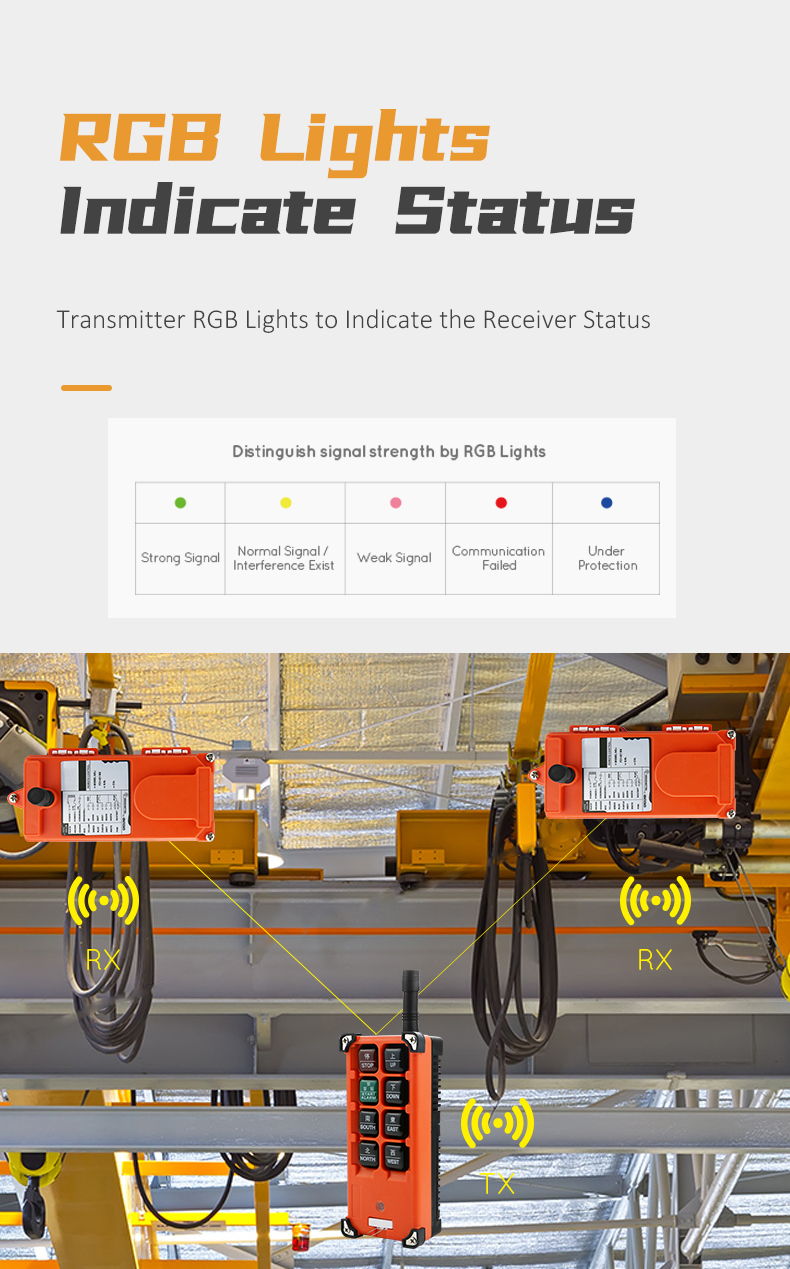

● RGB lights to indicate the signal strength
Download Center
Industrial Remote-Control Solutions Specification V1.0
How Do Industrial Remote Controls Work?
Industrial remote controls are controls that operate machines, vehicles and devices by means of a radio frequency. Basically, these work the same as, for example, remote controlled toys. A radio transmitter sends specific radio waves when a button is pressed, or when a switch or wheel has to turn (a command). Depending on the settings that have been entered in the software of the industrial remote control, the transmitter sends a radio wave to the radio module in the receiver. This interprets it, and in turn carries out the command.
Different Channels with Industrial Remote Controls
There are different frequencies that have been made available and can be used. This can vary per country. Industrial remote controls generally make use of a 433MHz/868MHz/915MHz band, and this solution is made base on 915Mhz FSK modulation. Indeed there is an endless amount of radio waves that are moving in the air. These can be radio waves from mobile phones, but also Wi-Fi-networks or for communication between emergency services such as the fire department and police. To keep these channels of communication open it was decided that each type of application must use an own bandwidth. Within this bandwidth one could use a particular channel, for example 433.92Mhz to prevent intervention. If needed, we can also make it suitable for 433Mhz
Remote Controls with Long Range
One of the advantages of this remote control solution is the long range. It can reach a range of 400M~1000M. This depends on the weather, or the using conditions. If the remote is being used in a forest or in an area where, for example, there is a lot of steel, the communication distance will be seriously affected. Because the weather and the environment have a strong influence, the range is always measured in open field.
Typical application:
Wireless Remote Control System; Wireless Game Controller, Remote Control Toys; Wireless remote control for electronic consumer products; Industrial Remote Control, Intelligent Control System, Smart Home, Home Automation, Home Appliance Control, Building and Residential (smart home) Control, Remote control that supports radio frequency (RF) technology
