50Ω
DL-J023-5GB
400-6000MHz
| Quantity: | |
|---|---|
High Gain Blade Shape Waterproof 5G Rubber Rod Antenna
Antenna Introduction:
This full bands blade shape 5G antenna is an external omnidirectional antenna, which can be mainly used for wireless router, or IoT gateway solutions. It is compatible with full band network equipment, such as LET/DUT/4G/5G/GSM/GPRS/NB IoT, with a frequency range from 400Mhz to 6000MHz.
Its waterproof ABS cover is made of high-grade shielding material, which is eco-friendly and durable; and its pure copper gold-plated SMA connectors are resistant to oxidation with stable transmission; while the inside part of the antenna is a precision circuit board, which has higher gain, better transmission efficiency, and stronger anti-interference ability.
With all these above features, it can transmit/receive stable & strong signal, with high receiving sensitivity, strong wireless penetration ability, and wider coverage. It can be widely used for Smart Home, Power Monitoring, Network Communication, Vehicle Navigation, Rail Transit, Smart Traffic, Smart Power, Smart Vending Machines, Meteorological Monitoring, etc.
Antenna Characteristics:
● ROHS/REACH
● High gain
● Strong compatibility
● Good stability
Application Field：
● Smart Express Cabinet
● Security alarm
● Smart buildings, smart buildings
● Smart home
● Power monitoring
● Smart Industry
● Traffic monitoring equipment
● Smart Agriculture
● Temperature and humidity monitor
● Drone
● Medical automation
● Wireless module
Electrical Testing Report:
| Frequency | 400~6000MHz |
| Impedance | 50Ω |
| V.S.W.R | ≦ 2.0 |
| Polarization | Linear, Vertical |
| Gain | 5dBi |
| Radiation direction | Omni-directional |
| Power | 5W |
| Connector | SMA-J |
| Operating temperature | -35℃ ~ 75℃ |
| Storage temperature | -40℃ ~ 70℃ |
Download Center
DL-J023-5GB Specification V1.0

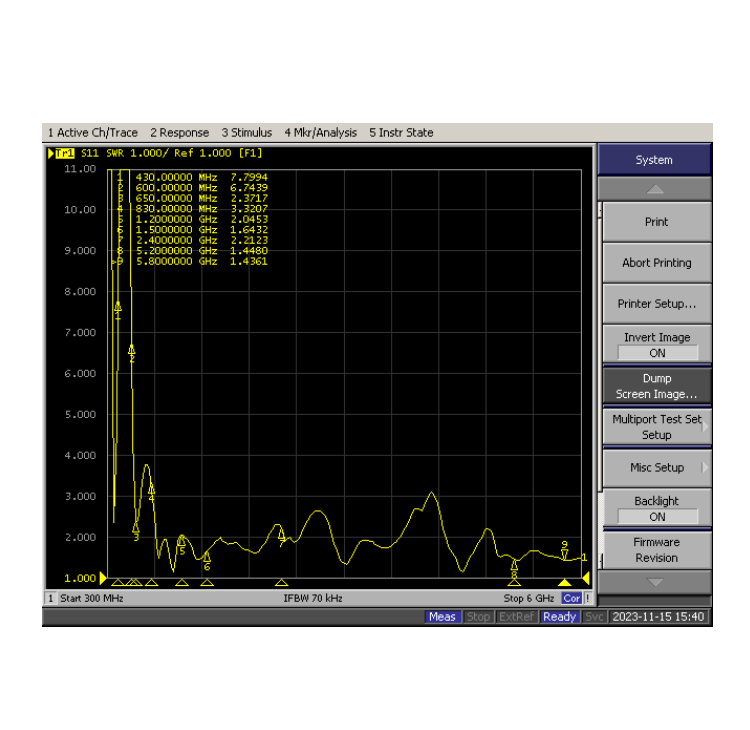

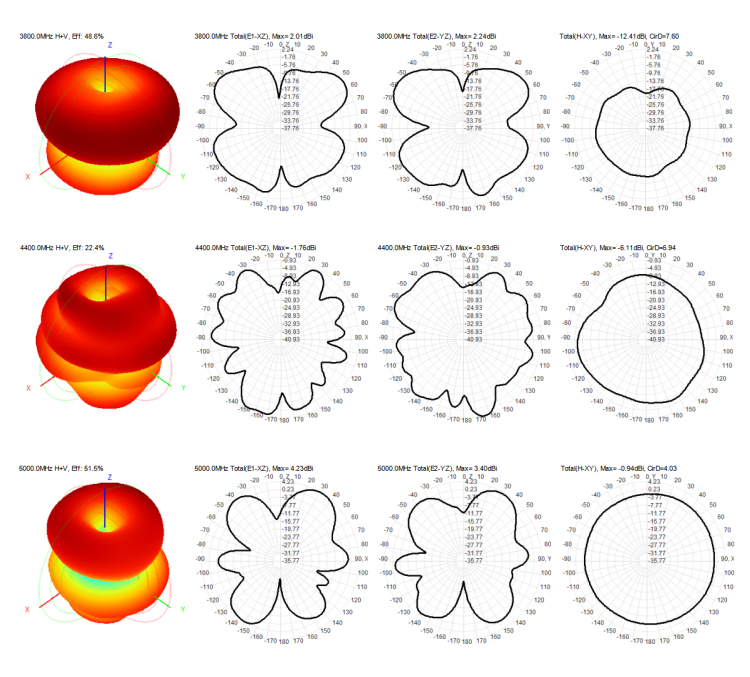

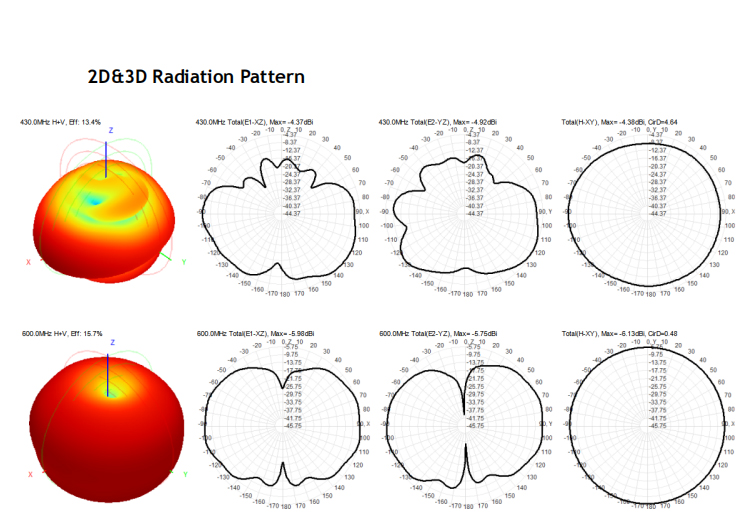

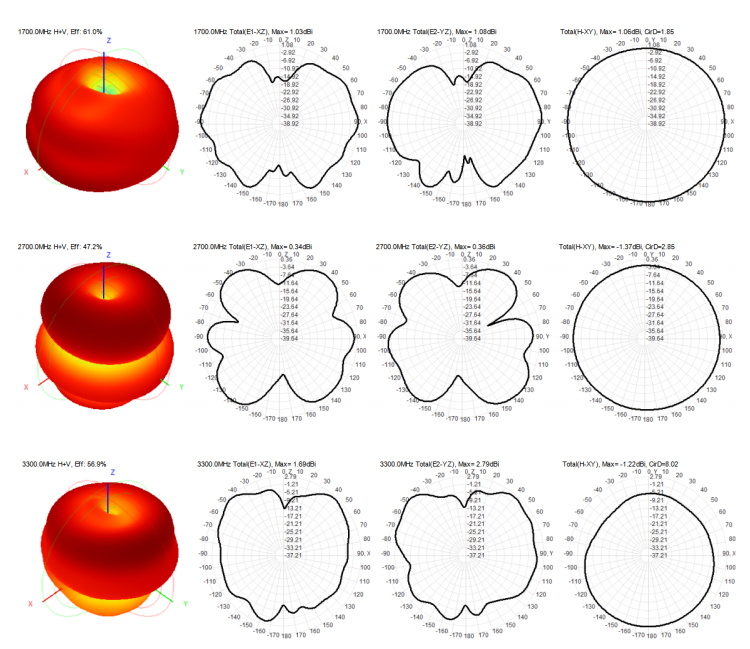

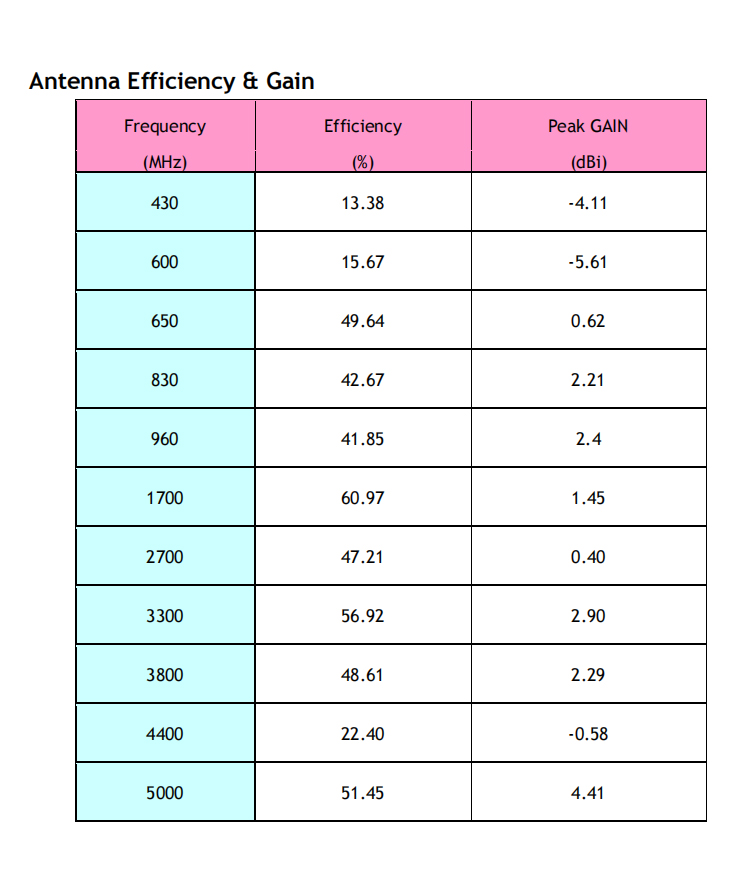

Passive Data:
