824-960/1710-2170MHz Magnetic Base GSM Chuck Antenna with 3dBi High Gain
Antenna Introduction:
A Chuck Antenna is a commonly used antenna type in wireless communication devices, with the help of its magnetic suction cup, it can be easily attached to different surfaces, such as walls, windows, televisions, etc. The main principle of a Chuck Antenna is to use the metal coils on the antenna to achieve the reception and transmission of electromagnetic wave signals, thereby achieving wireless communication.
GSM antennas are suitable for the frequency range of 824-960/1710-2170MHz. Due to different wavelengths, they are generally used in combination to ensure network coverage, and meet your specific needs. This DL-X018-GSM Chuck antenna is compact in size, but features a stable performance and good standing wave ratio. It also has an excellent anti-vibration and anti-aging functions, which mainly used in smart meter devices, external car antennas, and other mobile wireless devices.
Antenna Characteristics:
● ROHS/REACH
● High gain
● Strong compatibility
● Good stability
Application Field：
● Smart Express Cabinet
● Security alarm
● Smart buildings, smart buildings
● Smart home
● Power monitoring
● Smart Industry
● Traffic monitoring equipment
● Smart Agriculture
● Temperature and humidity monitor
● Drone
● Medical automation
● Wireless module

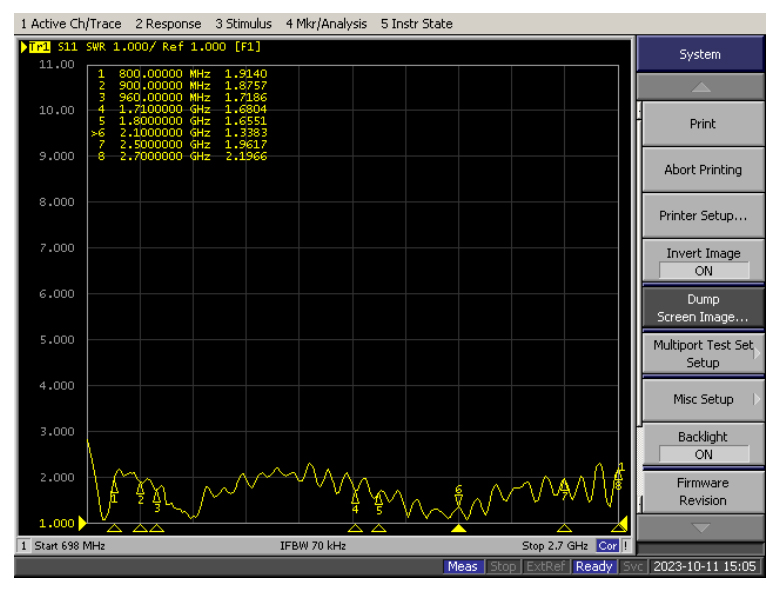

Electrical test report:
| Frequency | 824-960/1710-2170MHz |
| Impedance | 50Ω |
| V.S.W.R | ≦ 2.0 |
| Polarization | Linear, Vertical |
| Gain | 3dBi |
| Radiation direction | Omni-directional |
| Power | 10W |
| Connector | SMA-J |
| Operating temperature | -35℃ ~ 80℃ |
| Relative Humidity | 40 ~ 85% |
Download Center
DL-X019-GSM Specification V1.0
Passive Data:
This Chuck Antenna can be installed to a better signal receiving position through an extension cable, which can enhance the sensitivity and stability of the antenna's signal transmission, improve the communication distance and signal quality, even in harsh environments.
Chuck Antennas can be used for various applications, e.g.: vending machines, car radios, courier cabinets, charging piles, car GPS, vehicle monitoring systems, etc.
Note: the specifications of the wire and connector can be flexibly selected.
