50Ω
DL-X014-4G
780-960/1710-1990/2300-2700 MHZ
5dBi
Max 20W
SMA-J
-40 ~ +85℃
319*30mm
| Quantity: | |
|---|---|

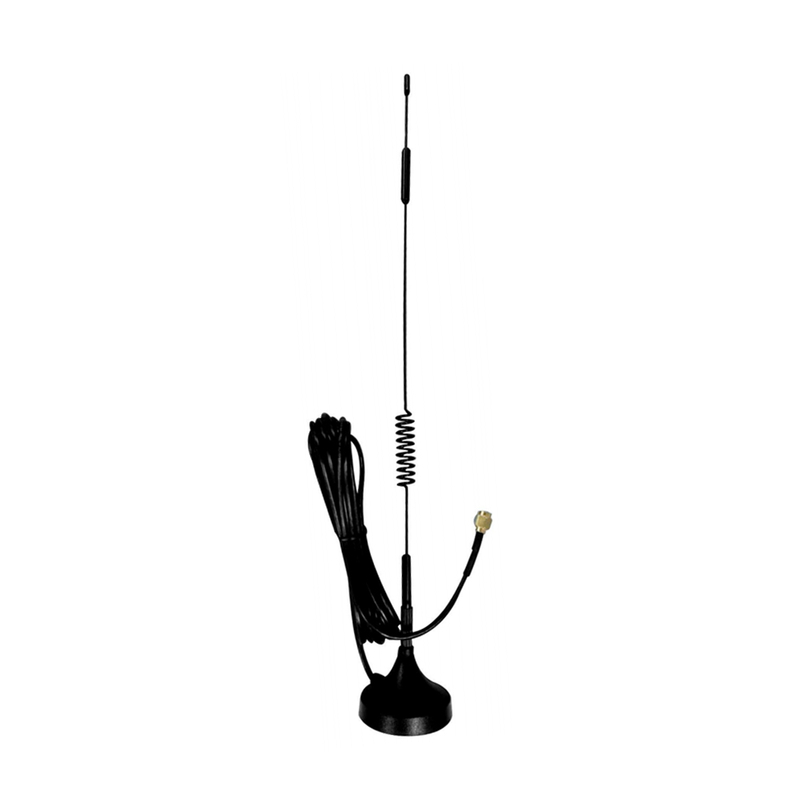

4G Magnetic Base Whip Antenna with 3M RG174 Cable and SMA Male Plug Sucker
Antenna introduction:
This 4G Magnetic Base Whip Antenna works in the 780-960/1710-1990/2300-2700 MHz frequency band, with 3M RG174 Cable and SMA Male Plug. The current connector is SMA-J type, which is made of pure copper with gold-plated, and various connectors can be customized. It is a high gain (5dBi) 4G antenna, while the daily output of this Whip Antenna can reach 5K sets. We can customize the packaging, cable length, connector, according to your special requirements, welcome to inquire!
It is a 4G Whip Antenna made of special stainless-steel spring wire with good elasticity. Bottom anti-collision treatment, with magnet inside and antenna grounding material. For 433/315/470/ 868/ 915MHz/ FM/ VHF/ UHF/ GSM/ GPRS/ 2G/ 3G/ 4G/ 2.4G/SG/ 80-6000MHz wireless transmission applications.
It can be installed to a better signal receiving position through an extension cable. The specifications of the wire and connector can be flexibly selected. The fixing methods include magnetic suction / adhesive / vacuum suction / screw buckle.
It is widely used in smart home, wireless router, wireless meter reading, MID, DVB, digital TV, wireless camera, smart grid, Internet of Vehicles, wireless industrial control and monitoring, ZigBee technology wireless field, Internet of Things sectors, Wireless data transmission, wireless broadcast TV, etc.
Download Center
Antenna characteristics:
● High gain
● Strong compati bility
● Good stability
Application field：
● Smart Express Cabinet
● Security alarm
● Smart buildings, smart buildings
● Smart home
● Power monitoring
● Smart Industry
● Traffic monitoring equipment
● Smart Agriculture
●Temperature and humidity monitor
● Drone
● Medical automation
● Wireless module
Electrical test report:
| Frequency | 780-960/1710-1990/2300-2700 MHZ |
| Impedance | 50Ω |
| V.S.W.R | ≦2.0 |
| Return loss | 135/46MHz |
| Gain | 5dBi |
| Polarization | Linear |
| Max. Power | 50W |
| Connector | SMA-J |
| Operating temperature | -30 ~ 65 ° C |
| Storage temperature | 40 ~ +85% |
