One-button Remote Control 433M SOS for Help

One-button 433Mhz Remote Control with SOS Function

This SOS remote control is widely used in access control, security alarm devices, home automation, motor switching control, lighting control, LED lamp controllers, wireless doorbell transmitter, curtain remote control, remote control of drying racks, home security remote control, etc. Special function can be developed according to your requirements!

Button: 1 key

Supporting RF Module: 433M/315M receiving module

Brief Introduction

Model: SOS01

Frequency: 433M/315M (other frequencies can be customized)

Communication protocol: MCU learning code

Working current: 8.5mA

Standby current: 10nA ~1uA

Power supply: DC3V, CR2025 button battery

Transmit power: 13dBm

Transmission distance: about 300m (open ground, receiving sensitivity is -110dBm)

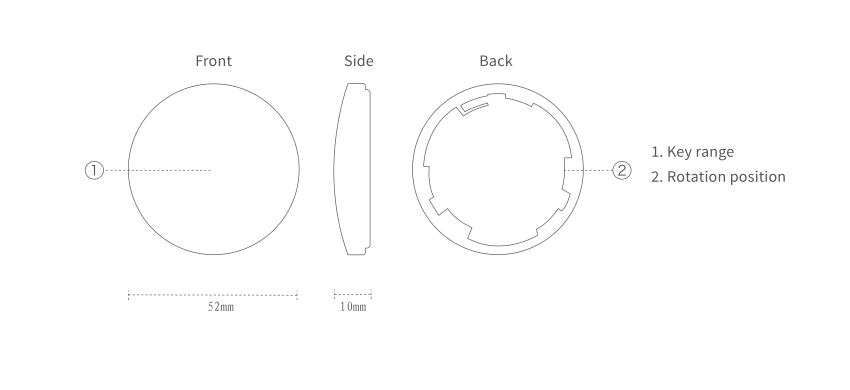

Size: Dia52*H10mm

Weight: 20g

Download Center

SOS01 Specification V1.0

Typical application

Wireless Remote Control System; Wireless Alarm & Security Control System; Intelligent Control System, Smart Home, Home Automation, Home Appliance Control, Building and Residential (smart home) Control, Remote control that supports radio frequency (RF) technology
