50Ω
DL-J006
315/433/470/868MHz / 2.4GHz / GSM
3dBi
50W
N/M
N/M
79*12mm
| Quantity: | |
|---|---|
315/433/470/868MHz/2.4GHz/GSM Rubber Rod Antenna with High Gain (3 dBi)
Antenna introduction:
DL-J006 rubber rod antenna is in the 433MHz frequency band, and can be adjusted for 824~960MHz;1710~2017MHz use, please contact us for more details, if you need to do any customization. The current connector uses SMA pure copper with gold-plated, with upmarket appearance, strong mechanical sense, and high gain 3dBi, while the daily output of this antenna can reach 5K sets. We can customize the packaging, antenna size, as well as design style according to your requirements, welcome to inquire!
Fixed straight head, fixed elbow and bendable design, suitable for wireless LAN, wireless video, smart home, smart city, intelligent agriculture, wireless router, wireless meter reading, MID, DVB, digital TV, wireless camera, smart grid, Internet of Vehicles , wireless industrial control and monitoring , ZigBee technology wireless field , Internet of Things sectors , Wireless data transmission , etc. It has the advantages of wide frequency bandwidth , small standing wave ratio and good consistency.
Antenna characteristics:
● High gain
● Strong compatibility
● Good stability
Application field：
● Smart Express Cabinet
● Security alarm
● Smart buildings, smart buildings
● Smart home
● Power monitoring
● Smart Industry
● Traffic monitoring equipment
● Smart Agriculture
●Temperature and humidity monitor
● Drone
● Medical automation
● Wireless module

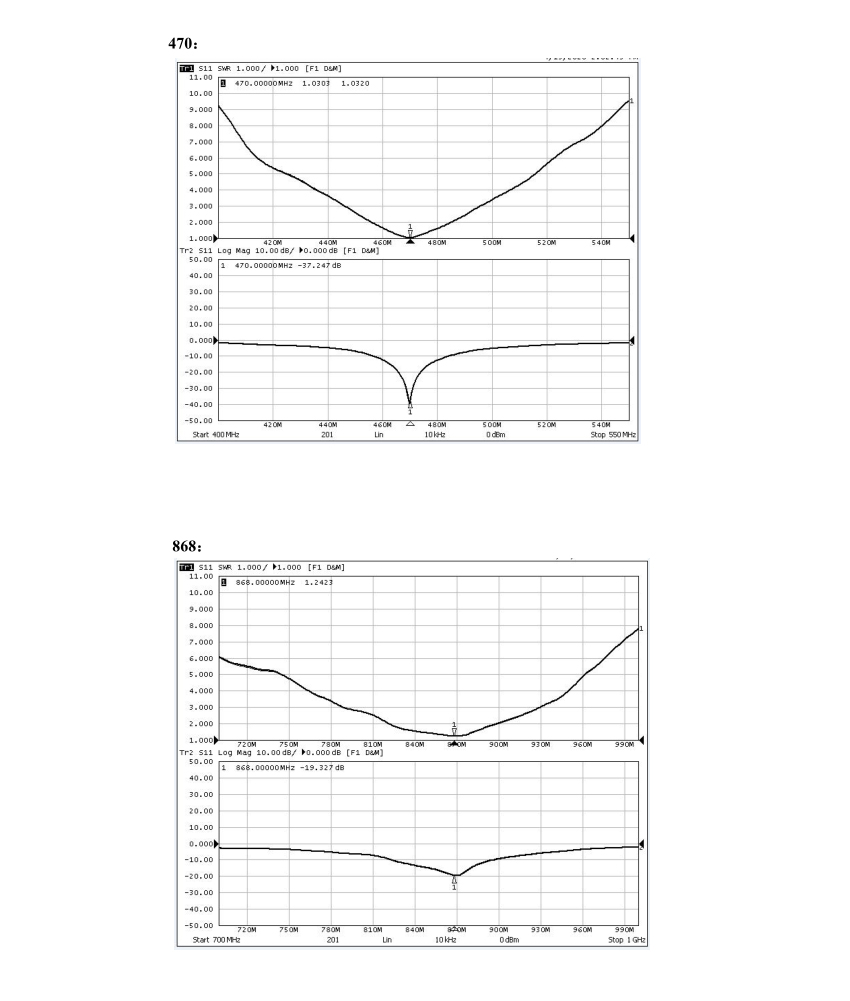

Electrical test report:
| Frequency | 315/433/470/868/824~960/1710~1990/2400~2500MHz |
| Impedance | 50Ω |
| V.S.W.R | Maximum S.W.R 1.92: 1 |
| Return loss | -10dB |
| Gain | 3 dBi |
| Linear polarization | vertical |
| Power | 50W |
| Connector | SMA |
| Operating temperature | -10 ~ 60 ° C |
| Storage temperature | -30 ~ 80 ° C |
Download Center
DL-J006 Specification V1.0
Passive data:
DreamLNK is a professional Wireless Module and RF Antenna supplier, who is specialized in wireless communication filed for almost 8 years. Our products include various wireless modules, different Antennas (Sucker antenna, Spring antenna, Rubber Rod Antenna, FPC/PCB Antennas, etc.), Remote control, Door/windows sensors, Smoke detectors, etc. Welcome to inquire!
