50Ω
DL-030-002
2.4G-2.5Ghz
N/M
N/M
-40 ~ +85℃
35mm
| Quantity: | |
|---|---|

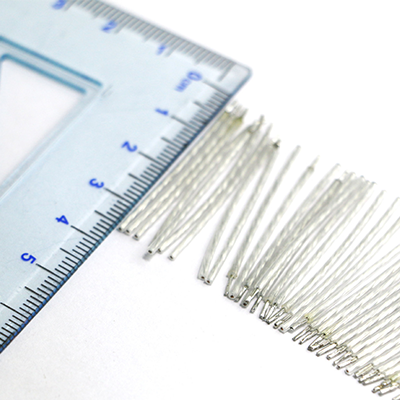

Silver-plated Wire switch to the Antenna
Antenna introduction:
Use pure copper SMA anti-oxidation connector with anti-interference magnetic ring (connector can be customized)
It can be installed to a better signal receiving position through an extension cable. The specifications of the wire and connector can be flexibly selected. The fixing method is magnetic suction / adhesive / vacuum suction / screw buckle.
It is widely used in smart PDA, wireless POS machine, smart home, wireless Router, wireless meter reading, MID, DVB digital TV, wireless camera, smart grid, vehicle, wireless industrial control and monitoring, ZIGBEE technology wireless field, Internet of things field, wireless data transmission, wireless broadcast TV, etc.
Antenna characteristics:
● High gain
● Strong compati bility
● Good stability
Application field：
● Smart Express Cabinet
● Security alarm
● Smart buildings, smart buildings
● Smart home
● Power monitoring
● Smart Industry
● Traffic monitoring equipment
● Smart Agriculture
●Temperature and humidity monitor
● Drone
● Medical automation
● Wireless module
Electrical test report:
Test parameters | |||
Product Name | 2.4Ghz Wire Antenna | Model No | DL030-01 |
Electrical Specifications | |||
Frequency Range | 2400MHz~2500MHz | Polarization | Vertical |
Input Impedance | 50 Ω | Radiation direction | Omnidirectional |
VSWR | ≦1.5 | Max. Power | 50W |
Gain | 2 dBi | Bandwidth | 100MHZ |
Mechanical Specifications | |||
Dimensions | 35mm±3mm | Radome Color | Transparent |
Connector | Solderable Wire | Cable Length | 32±3mm |
External diameter | 1.13mm | Wire core | 0.6mm |
Material | Copper-clad aluminum | Wire diameter | 4mm |
Working Temperature | -40℃-+85℃ | Storage Temperature | -30℃-+65℃ |
Relative Humidity | 40~85% | ||
