DL-CA-SMA-JZ-316-500
0~6G
Phosphor bronze;Gold-plated
N/M
N/M
-40 ~ +85℃
500mm
| Quantity: | |
|---|---|

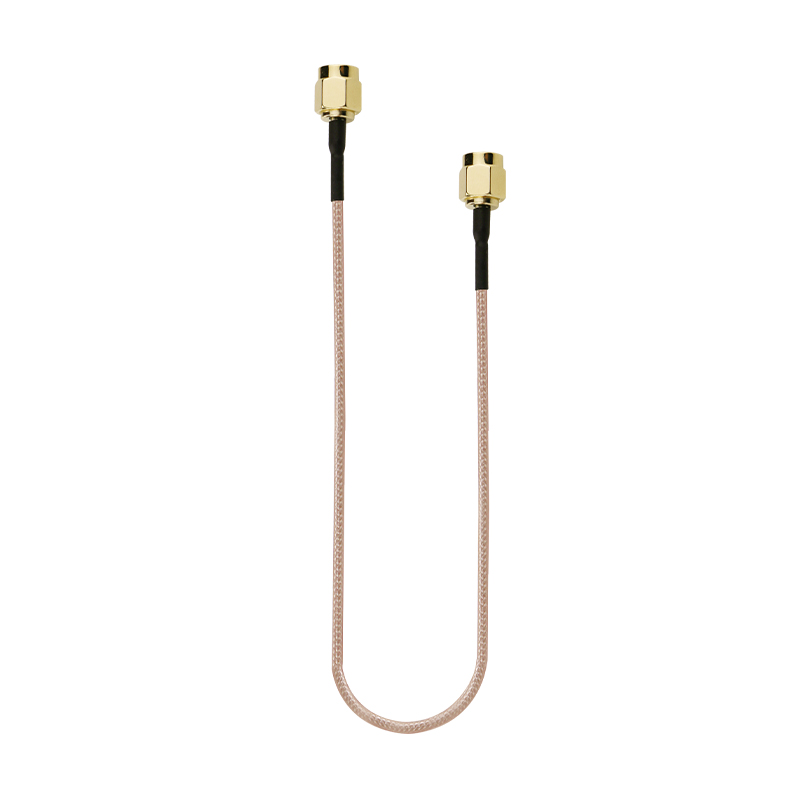

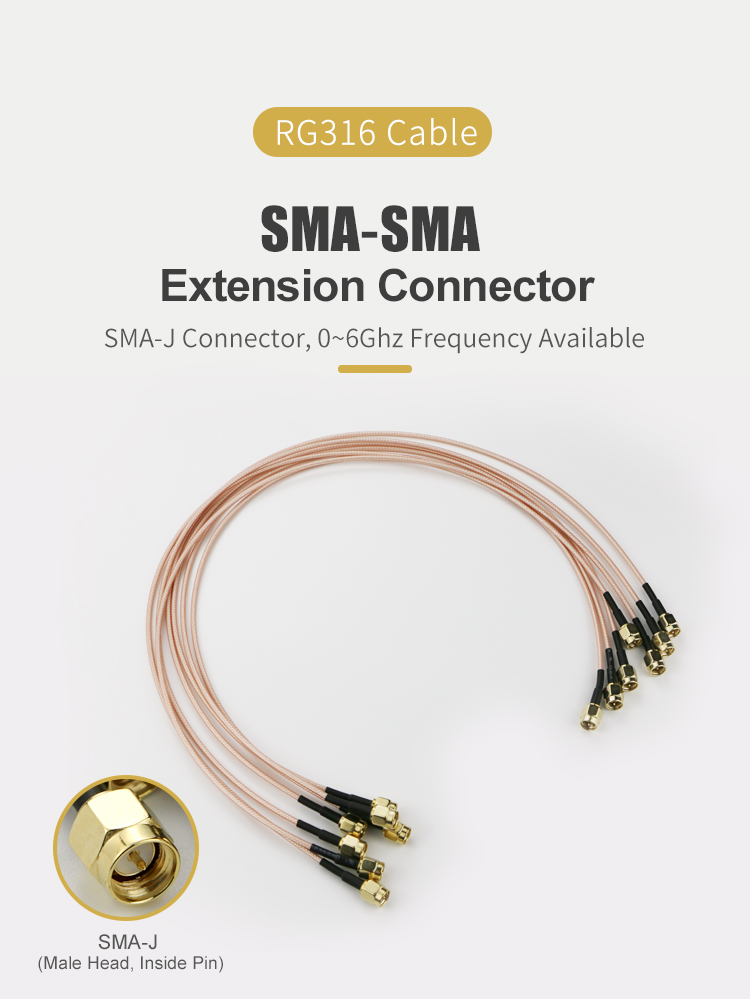

SMA-J - SMA-J Extension Cable with 500mm RG316 Cable for Antenna Use
Advantages
● Good Compatibility
● Signal Sensitivity
● Good Stability
● Easy to Install
● Low Power Consumption
● Widely Used
Download Center
DL-CA-SMA-JZ-316-500 Specification V1.0
Electrical test report:
| Length | 500mm |
| Model No. | DL-CA-SMA-JZ-316-500 |
| Net Weight | 0~6G |
| Impedance | 50 OHM |
| Connector type | SMA-J to SMA-J, External thread, Internal hole |
| Max power | 10 W |
| Conduction impedence | 0.5ohm |
| Insulation resistance | 30 ohm |
| Connector | SMA-J & SMA-J |
| Cable | RG316, L=500mm |
| Temperature | -45~80°C |

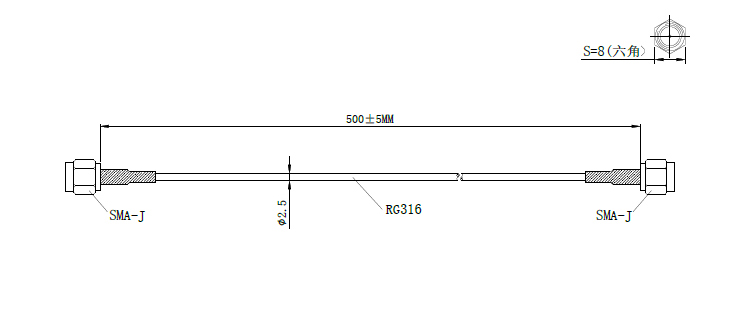

Size:

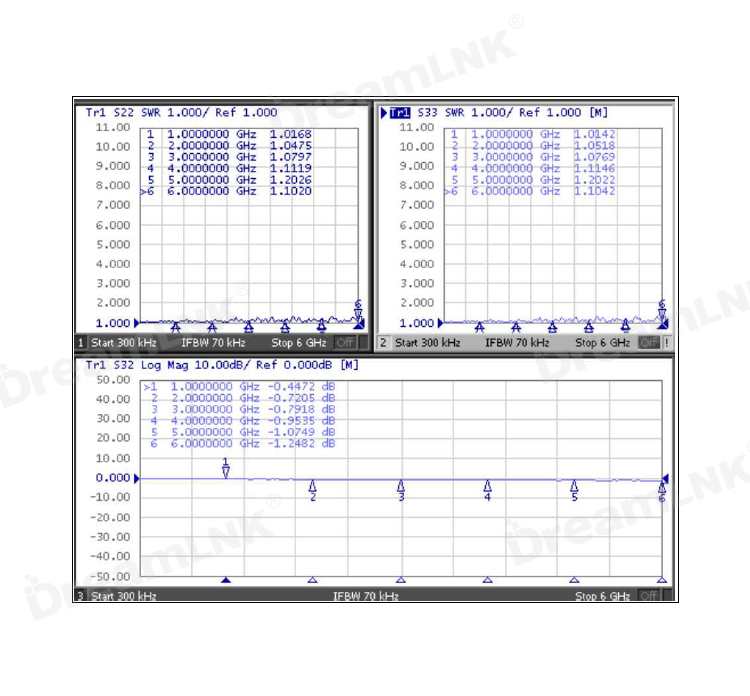

SWR:
