DL-TRP-A
433/868/915Mhz
FSK
20-27dbm
2.4-5.5V
- 117dbm
3000m
16*20*2mm
500mW UART Wireless Transparent Transmission Module
DL-TRP A Series RF Modules are medium power, high performance wireless transparent transmission FSK transceiver modules. They can work in 433/470/868/915MHz ISM band, compact in size, but large power, high sensitivity, long transmission distance, and high communication rate; they can automatically complete communication protocol conversion and data receive control within the module. The module provides UART serial data interface, which enables wireless data transmission by providing only serial data. Users can also flexibly configure the serial rate,operating frequency, transmission power, communication rate, modulation frequency offset, receiving bandwidth and other parameters of the module according to their own needs.
DL-TRP series modules can be widely used in all kinds of wireless data transmission fields, and are ideal for designing wireless data transmission products.
Features:
● High power output, high performance RF parameters and high reliability;
● FSK modulation, half duplex communication, strong anti interference ability
● A series 433 / 470 / 868 / 915MHz ISM frequency band, no need to apply for frequency point
● The maximum output power is 500MW (27dBm), and the output power can be adjusted
nonlinearly in the range of 20-27dbm;
● The module adopts single power input, low noise DC chip supplies power to RF and PA
respectively, and the receiving sensitivity is - 117dbm;
● Transmit transient working current: 450mA@27dBm
● Receiving working current: 25mA
● Power consumption in standby mode: 5mA (not applicable to products with ultra-low power
consumption and battery system power supply)
● Standard TTL level UART serial interface, can be extended to RS232 interface or other
interfaces
● The working frequency can be set, frequency division multiplexing for multiple modules
available, without mutual interference
● The modulation frequency offset and receiving bandwidth are optional, which can be
configured by yourself through software
● Communication protocol conversion and RF transceiver switching are completed automatically,
and users do not need to intervene, which is simple and easy to use
● The communication rate is 1.2kbps-115.2kbps, which can be configured by software
● Provide enable control signal, and the duty cycle is controlled by yourself to meet different
requirements
● RSSI function, LED indication function
● Long transmission distance: more than 3km in open area (without interference)
● Compact size: 16*20*2mm, SMD package, easy to install
● No debugging needed when production
Download Center
Technical Parameter
Limit value
| Parameters | Min. | Max. | Unit |
| Working Voltage (VCC) | -0.3 | +5.5 | V |
| storage temperature | -40 | +150 | ℃ |
| Working temperature | -40 | +85 | ℃ |
| Reflow temperature | +260 | ℃ |
Specification
| Parameters | Condition | Min. | Typi. | Max. | Unit |
| Power voltage | 2.4 | 5.0 | 5.5 | V | |
| Working current | -40 | 25 | 85 | ℃ | |
| Working frequency | DL-TRP-433 | 414 | 434 | 454 | MHz |
| DL-TRP-470 | 450 | 470 | 490 | ||
| DL-TRP-868 | 849 | 868 | 889 | ||
| 895 | 915 | 935 | |||
| Max. output power | 18 | 26.5 | 27 | dBm | |
| Output power range | 1 | 27 | dBm |

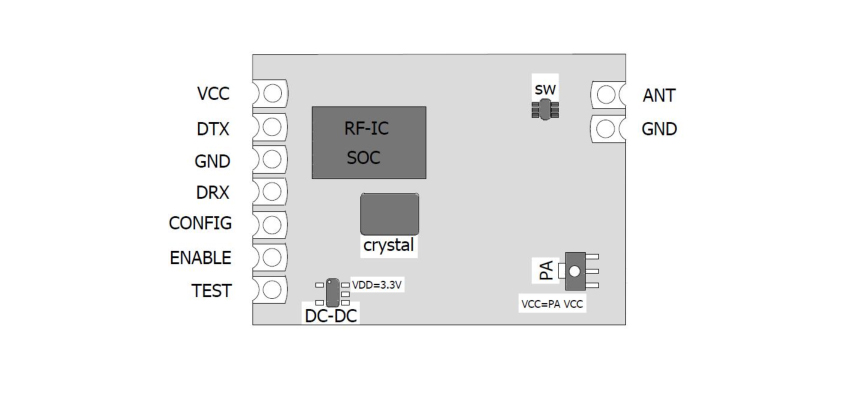

Pin
| Pin name | Pin direction |
| VCC | Positive power supply, DC 2.4-5.5V, DC 5.0V is recommended |
| DTX | Data Output |
| GND | Negative pole of power supply, Grounding |
| DRX | Data Input |
| CONFIG | Low level enters the configuration state, and exits the configuration state at high leve |
| ENABLE | Low level enters into the working state, data transmission and configuration; high level into sleep state |
| TEST | Not connected |
| ANT | RF signal input / output port; connected to 50 ODL antenna |
Size
Typical application
Wireless Data Acquisition, Wireless Data Communication, Wireless Data Monitoring and Transmission, Wireless Voice/Audio Transmission, Wireless Sensoring; Wireless Remote Control System; Wireless Game Controller, Remote Control Toys; Wireless Keyboard, Wireless Mouse; Wireless remote control for electronic consumer products; Wireless Alarm & Security Control System; Wireless Sensor Networking, Automatic Data Collection; Industrial Remote Control, Intelligent Control System, Smart Home, Home Automation, Home Appliance Control, Building and Residential (smart home) Control, Smart City, Logistics Tracking, Warehouse Patrols, RFID (radio frequency identification); Telemetry, Automatic (Water, Electricity, Gas) Meter Reading system; Remote LED, Remote Curtain; Remote control that supports radio frequency (RF) technology
