H02
433/315 MHz
1527 Learning Code
AC90~250V
280m
82*82*43mm
| Quantity: | |
|---|---|
H02 Wireless Smart Doorbell Kit for Houses
Specifications
| Voltage | AC90~260V | Frequency | 433MHz |
| Output Power | 0.15W | Standby Power | ≤10mW |
| Sensitivity | -112dbm | Volume | Up to 100db |

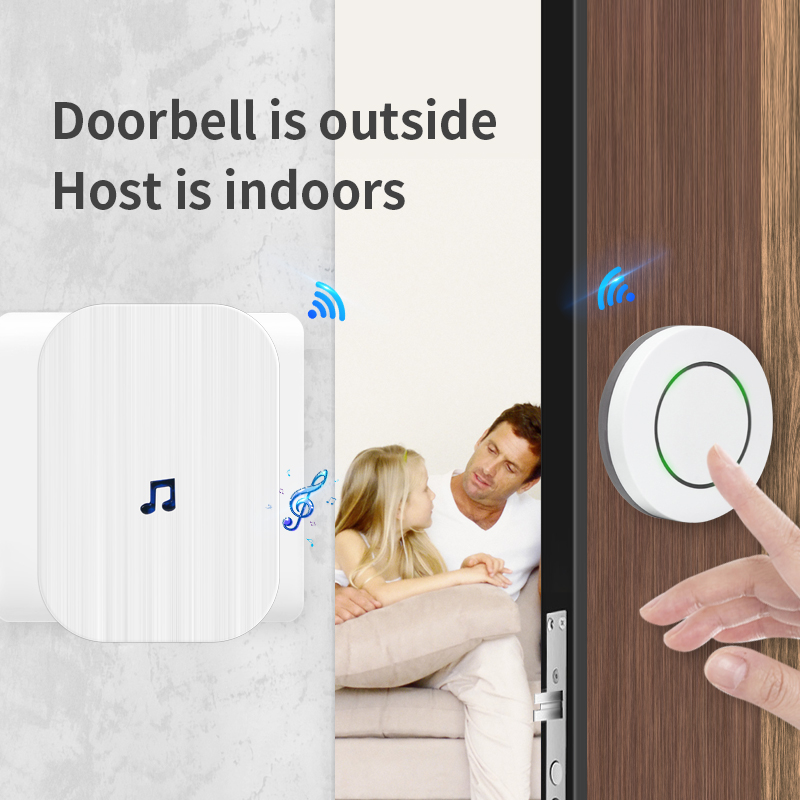

Installing Plug-in Chime
Plug into any regular household socket.
( Please tear metal strip protective film off before using).
1. Melody Selection
This Chime provides more than 50 pieces of music (it’s up to the Plug-in Chime you bought). When it is plugged in, press the music select button to choose desired music or press forwards to play previous music and backwards to play next music until γou hear a chime you Iike. (If you want the Chime to remember selected music, please refer to below point 5~6 if anγ expanded units exist).
2. Sound Volume Selection
Press the volume control repeatedly until the desired volume is achieved - 5 levels are available as a circle, lowest level is mute.
3. Pairing with your Wi-Fi video doorbell
Press and hold Volume button for 4 seconds until the LED indicator lights up, Wi-Fi enters into pairing status. Then press the button on the Wi-Fi video doorbell within 5 seconds, pairing is completed once LED indicator on the Chime is flashing. When above procedure is finished, pairing is quit automatically.
4. Two or above Wi-Fi video doorbells pairing with the Same Music or Same Chime Unit
Choose one favorite music by pressing music select button, then long press Volume button for 4 seconds to enter pairing status. Press the Wi-Fi video doorbell within 5 seconds to get
connection, once LED indicator on Chime is flashing, pairing is completed. Repeat this operation to get other required Wi-Fi video doorbell connected with same music or same Chime unit. When above procedure is finished, quits automatically.
5. Two or above Wi-Fi video doorbells Pairing with different Music
Choose one favorite melody first, long press 4 seconds on Volume button to enter pairing status, then press the first Wi-Fi video doorbell to pair.Press music select button to change melody and pair witl1 different Wi-Fi video doorbell one by one. When above procedure is finished, pairing is quit automatically.
6. Two or above Chimes Unit Pairing with Same
Wi-Fi video doorbell
Long press Volume button on first Chime Unit for 4 seconds to enter pairing status, press the Wi-Fi video doorbell within 5 seconds to get connection. Repeat above operation to pair Wi-Fi video doorbell with required Chime Unit one by one.
7. AII Pairing Memory Clearance
Press and hold Volume button until plug into household socket for 5~10 seconds to erase arll pairing memory, when Plug-in Chime LED indi.cator long light up that means setting successfully, thus program returns to default.
Download Center
H02 Specification V1.0
Typical application
Wireless Remote Control System; Wireless Alarm & Security Control System; Smart Home, Home Automation, Building and Residential (smart home) Control, Access control, Security alarm, Remote control that supports radio frequency (RF) technology
