2400~2483.5MHz
DL-24PA-C
2400~2483.5MHz
CC2500
-30~1dBm
1.8~3.6V
-104dBm
650m
19.5*12*2.1mm
| Quantity: | |
|---|---|
2.4Ghz High Power RF Transceiver Module with TI CC2500RGPR Chip Design
This DL-24PA-C RF Transceiver Module was designed base on TI-Chicon’s CC2500 2.4Ghz wireless transceiver chip, it is a compact remote wireless transceiver module wiith PA. Sensitivity of this 2.4Ghz wireless module is up to -104dbm, maximum transfer rate is up to 500Kbps, output power through register configuration ranges from -30dbm to 20dbm.
The module has integrated all radiofrequency related functions, and users can easily develop wireless products with stable performance and high reliability directly, which will extremely shorten the development cycle without in-depth understanding of RF circuit design. It is pin to pin with our DL-24PA (binding version base on CC2500 wafer), but this DL-24PA-C is CC2500RGPR chip-based design, SMD and DIP interface modes are adopted, so it can be SMT directly when mass production.
This module is compact in size, and can be used easily in portable smart products, such as smart home, toys, model airplane and near range digital transmission control. It is also compatible with our DL-24D 2.4G module without PA.
Applications
● Wireless Toy Controller
● Wireless keyboard, Mouse
● Consumer Electronics and Toy Aerial Models
● Meteorological monitoring, data collection
● Data monitoring transmission
● Intelligent Home Control
● Remote Controls Supporting Radio Frequency (RF) Technology
Features
● 600m transmission distance in open field (250Kbps)
● Operating frequency 2400-2483mhz
● Operating voltage: 1.8V-3.6V
● Programmable carrier detection, digital RSSI output
● Excellent selectivity and out-of-band isolation
● Gold plate binding process, high cost performance
● High frequency power amplifier, which adopts European and American brand chip
Download Center
DC Features
| Description | Min. | Max. | Unit |
| Power supply voltage | 1.8 | 3.6 V | |
| Working current | RX＜18mA | TX=110mA@0dbm | mA |
| Stand-by current | ＜1uA | uA | |
| Voltage of IO Port | Vss-0.3 | Vdd+0.3 | V |
| Working temperature | -20 | +85 | ℃ |
RF Features (unless otherwise stated, Temperature is 25℃, VCC =3.3V)
| No | Description | Parameter Range Min. Type. Max. | Unit | ||
| 1 | Applied Frequency Range | 2400 | 2483.5 | MHz | |
| 2 | Frequency Interva | 100K | Hz | ||
| 3 | Transmit Power | -30 | 20 | dBm | |
| 4 | Receiving sensitivity | -103 | dBm | ||
| 5 | Modulation mode | GFSK | 2-FSK | OOK | MSK |
| 6 | Transmission rate | 1.5 | 500 | Kbps | |
| 7 | Harmonic power | -38 | —— | -35 | dBm |
| 8 | Communication Distance | 500 | 600 | 650 | M |
| 9 | Sensitivity at 2.4K | -105 | dBm | ||
| 10 | OOK Modulation mode, Rate | 100 | Kbps | ||
| 11 | Standby Power Consumption | 0.9 | uA | ||
| 12 | Crystal Precision *3225/2*6 | 10 | PPM | ||

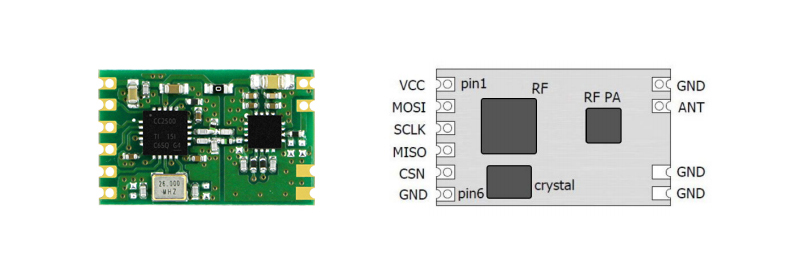

Pin Definitions
| Pin No | Pin’s Name | Description |
| 1 | VCC | Supply voltage, DC 1.8-3.6V |
| 2 | MOSI | SPI data input，MOSI |
| 3 | SCLK | SPI CLOCK |
| 4 | MISO | SPI data output, MISO |
| 5 | CSN | CSN=0 Valid |
| 6 | GND | Grounding, common ground with the system |
| 7 | ANT | Antenna interface，standard 50Ω antenna |
| Supplementary | PA control | GPIO0, GPIO2 Controls “Enable (EN) of the PA” |

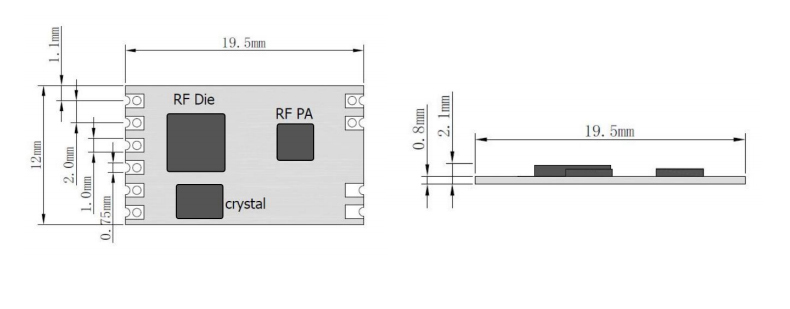

Size
