DL-24D
2.4G-2.5Ghz
CC2500
-30~1dBm
1.8~3.6V
-98dBm
100m
15.2*12*2mm
| Quantity: | |
|---|---|
High-performance 2.4G Transceiver Module with CC2500 Chip from TI
Module introduction
Designed base on TI-Chipcon's CC2500 wireless transceiver chip, DL-24D is a compact, cost-effective, remote wireless transceiver module, which is widely used in smart home, toy aeromodelling and close-range data transmission control fields. Sensitivity up to -98dbm, maximum transfer rate up to 500Kbps, output power through register configuration range from -30dbm to +1dbm.
This RF module integrates all radio frequency related functions, you can easily develop wireless products with stable performance and high reliability directly, which will extremely shorten the development cycle without in-depth understanding of RF circuit design. SMD and DIP interface modes are adopted, but manual welding is required due to different thermal expansion coefficient of the black glue and the binding wire inside.The small size of the module is convenient for portable products, and it can well meet the requirements of low-power system by combining with low-power MCU.
Applications
● Transmission distance: 100m in open air is more than (250Kbps);
● Operating frequency: 2400-2483mhz
● Operating voltage: 1.8V-3.6V
● Programmable carrier detection, digital RSSI output
● Excellent selectivity and out-of-band isolation
● Gold plate binding process, high cost performance
● Four-line SPI interface, strong versatility;
Typical application
● Wireless game controller
● Wireless keyboard and mouse
● Consumer electronics and toy model airplanes
● Wireless voice/audio transmission
● Data monitoring transmission
● Smart home control
● Remote control that supports radio frequency (RF) technology
Download Center
Technical Parameter
DC characteristics
| Description | Min. | Max. | Unit |
| Power supply voltage | 1.8 | 3.6 | V |
Working current | RX ＜17mA | TX=22mA@0dbm | mA |
Stand-by current | ＜1uA | uA | |
| voltage of I/O Port | Vss-0.3 | Vdd+0.3 | V |
| Working temperature | -20 | +75 | ℃ |
Radio frequency characteristics (Unless otherwise stated, temperature 25 ℃, VCC 3.3V)
| No | Description | Parameter Range Min.-Typ.-Max. | Unit |
| 1 | Applied Frequency Range | 2400,—，2483.5 | MHz |
| 2 | Frequency Interval | —,100K,— | Hz |
| 3 | Transmit Power | -30,—,1 | dBm |
| 4 | Reception sensitivity | —,-98,— | dBm |
| 5 | Modulation mode | GFSK,2-FSK,OOK | MSK |
| 6 | Transmission rate | 1.2,—,500 | Kbps |
| 7 | Harmonic power | -48,—,-45 | dBm |
| 8 | Communication distance | 80,—,100 | M |
| 9 | Sensitivity at a rate of 2.4K | —,-104,— | dBm |
| 10 | Rate in OOK modulation mode | —,—,100 | Kbps |
| 11 | Standby Power Consumption | —,—,0.9 | mA |
| 12 | Crystal Precision *3225/ 2*6 | —,10,— | PPM |

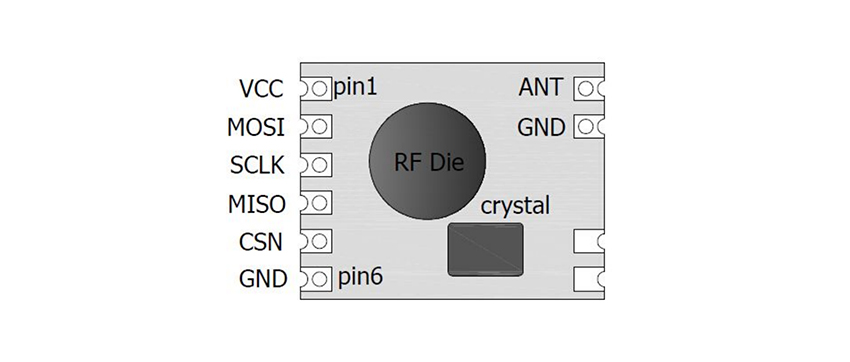

Pin Definitions
| Pin No | Pin’s Name | Description |
| 1 | VCC | Power Supply, DC1.8-3.6V |
| 2 | MOSI | SPI Data input，MOSI |
| 3 | SCLK | SPI CLOCK signal |
| 4 | MISO | SPI data output, MISO |
| 5 | CSN | CSN=0 valid |
| 6 | GND | Grounding, common ground with the system |
| 7 | ANT | Antenna interface, the standard 50 Ω antenna |
Size
