DL-24N
2.4G-2.5Ghz
NRF24L01
-18~6dBm
1.9~3.6V
-89dBm
120m
19*12*2mm
| Quantity: | |
|---|---|

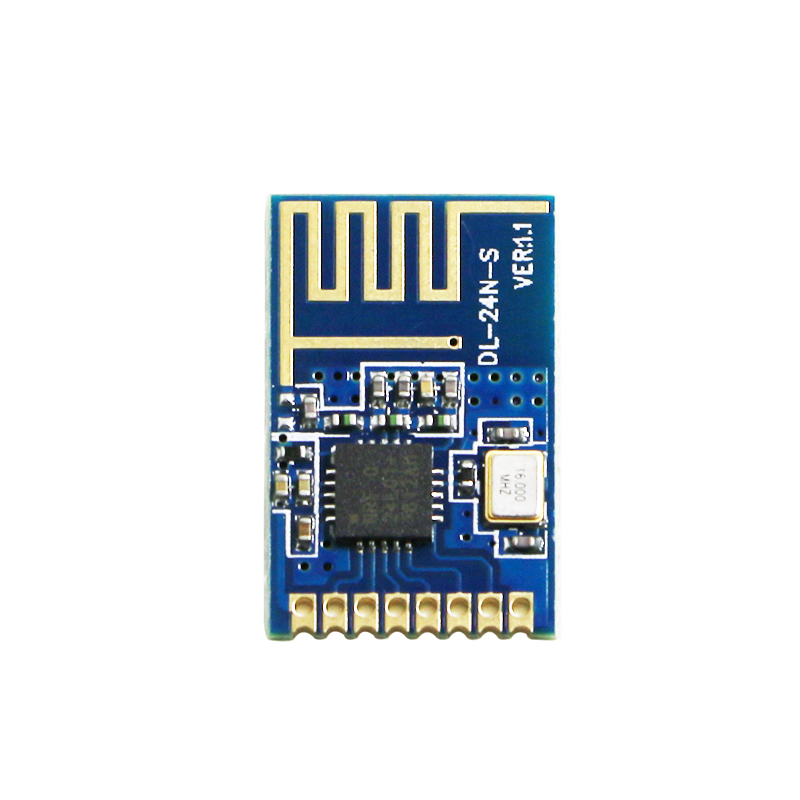

FCC Certicified 2.4G Wireless Transceiver Module with NRF24L01 Chip
Module introduction
Designed base on Nordic's NRF24L01 wireless transceiver chip, DL-24N Serial RF modules are 2.4g wireless modules with small size, excellent performance and long distance, which are widely used in intelligent home, toys, model airplane, and the field of close digital transmission control. The sensitivity can reach -82dbm@2m, the highest transmission rate can reach 2Mbps, and the output power can be configured in four levels from -20dbm to 0dbm through registers.
This wireless module has integrated all radiofrequency related functions, and users can easily develop wireless products with stable performance and high reliability directly, which will extremely shorten the development cycle without in-depth understanding of RF circuit design
The module adopts stamp edge and half hole interface design, which can not only meet customers' SMT application, but also realize transverse and longitudinal welding through needle arrangement. The module adopts high precision, high temperature stability crystal, with compact size, is convenient for portable products, and has a very high cost performance, suitable for mass applications
Applications
● Wireless game controller, toys
● Wireless keyboard and mouse
● Consumer electronics and toy airplane models
● Wireless voice and audio
● Data monitoring and transmission
● Smart home control
● Remote controller supporting radio frequency (RF) technology
Features
● Transmission distance: 120 meters @ 250KHz (open air)
● Working frequency 2400-2483MHz
● Working voltage: 1.9V-3.6V
● Programmable carrier detection, digital RSSI output
● Excellent selectivity and out-of-band isolation performance
● Immersion Gold PCB-ANT with extremely high cost performance
● 10ppm precision SMD crystal, excellent performance
24N Series Model Selection Guide:
Download Center
DL-24N Specification V1.0
Technical Parameter
DC characteristics
| Description | Min. | Max. | Unit |
| Power supply voltage | 1.9 | 3.6 | V |
Working current | 11.3mA@0dbm | 13.5mA@2Mbps | mA |
Stand-by current | 26uA@Standby Mode | 0.9uA@Powerdown | uA |
| Working temperature | -40 | 85 | ℃ |
| Voltage of IO Port | Vss-0.3 | Vdd+0.3 | V |
| Rate range | 0.5 | 50 | Kbps |
Radio frequency characteristics (Unless otherwise stated, temperature 25 ℃, VCC 3.3V)
| No | Parameter | Reference Value Min.-Typ.-Max. | Unit |
| 1 | Applied Frequency Range | 2400,—，2483.5 | MHz |
| 2 | Frequency Interval | —,100K,— | Hz |
| 3 | Transmit Power (4 levels) | -18,-12,-6 | dBm |
| 4 | Receive sensitivity | —,-82,— | dBm |
| 5 | Modulation mode | —,GFSK,— | MSK |
| 6 | Transmission Speed | 1.2,—,2000 | Kbps |
| 7 | Harmonic power | -48,—,-45 | dBm |
| 8 | Communication Distance | 80,—,120 | M |
| 9 | Sensitivity at 2.4K | —,-95,— | dBm |
| 10 | Sleep Power Consumption | —,—,0.9 | uA |
| 11 | Crysta Precision *3225/16MHz | —,10,— | PPM |
Table 3: High Frequency Characteristic of the module

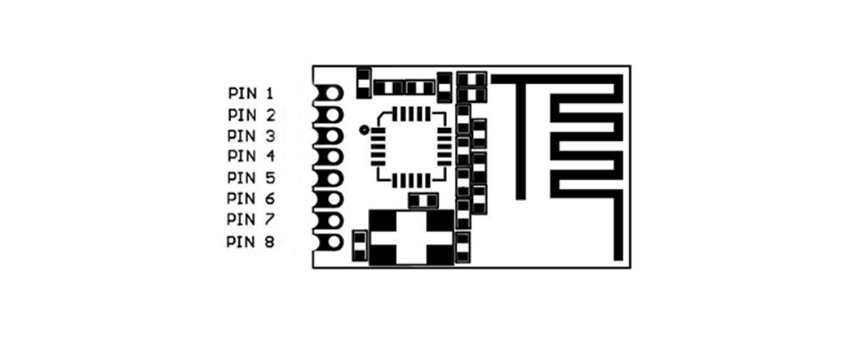

Pin Definitions
| Pin No | Pin’s Name | Description |
| 1 | VDD | Supply voltage, DC 1.9-3.6V |
| 2 | CE | Work mode selection, TX or RX mode selection |
| 3 | CSN | CSN=0 valid, SPI chip selection enable |
| 4 | SCLK | SPI clock |
| 5 | MOSI | SPI data input, MOSI |
| 6 | MISO | SPI data output, MISO |
| 7 | IRQ | Interrupt request port |
| 8 | GND | Module grounding，Reliably grounded and close to the system filter capacitor |
| ANT | PCB | The original standard package, PCB onboard antenna |
Size
As an RF Module and Antenna solution provider, DreamLNK has specialized in radio frequency field for more than 11 years. You can buy high quality 2.4G RF module, 2.4GHz Wireless Module, 2.4G UART modules, 2.4GHz RF front-end module, 2.4G RF Transceiver Module from us directly!
