DL-297LPA
2.4G-2.5Ghz
CC2500
-30~1dBm
2.3~3.3V
-89dBm
100m
17.6*12*2mm
| Quantity: | |
|---|---|

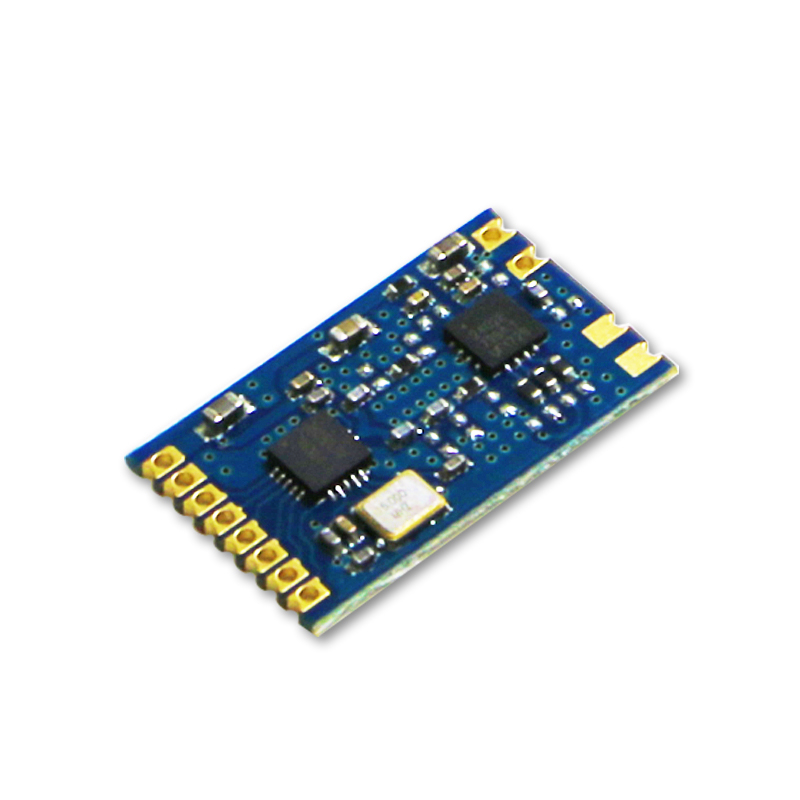

2.4G High Power RF Transceiver Module for Aeromodelling Use
Module introduction
DL-297LPA is a single-chip wireless transceiver module which works in ISM band of 2.400 ~ 2.483ghz. The module integrates RF transceiver, frequency generator, crystal oscillator, modem and otherfunctional modules, which supports “one to many” networking and communication mode of ACK.Transmission output power, working channel and communication data rate can be configured.
This module is a low cost 2.4G RF module with low power consumption, 2μ sleep current, and very few components, it has a compact size but excellent performance, easy to use. Its transmitting power is up to 20dbm, with strong anti-interference performance, high near channel rejection of the receiving filter,and good receiver selectivity.
The module adopts single chip architecture, high-precision crystal, high Q-value Murata inductor and small volume high-capacity filter capacitor. SMD components are used in the whole system, and the interface adopts stamp edge packaging form with standard spacing, which is conducive to the development of compact system and the application of SMD mass production.
Applications
● Aero-model
● RFID（Active Tag）
● Wireless mouse and keyboard
● Remote control toy
● Remote control of TV / Set-top box
● Wireless game handle
● Smart home & Security system
Features
● GFSK communication mode;
● Low power consumption, sleep current @ 2μA;
● Working frequency: 2400-2483Mhz;
● Working voltage: 2.3V-3.3V;
● SPI interface communication, the maximum interface speed is 4Mbps;
● Maximum transmitting power can reach 20dbm, and the receiving sensitivity can reach - 103dbm;
● Support the maximum data length of 32 bytes (two-level FIFO) or 64 bytes (single level FIFO);
● Support RSSI detection function;
● Support automatic response and automatic retransmission;
● With automatic scrambling code and CRC verification function
Download Center
Technical Parameter
DC characteristics
| Description | Min. | Max. | Unit |
| Voltage | 2.2 | 3.3 | V |
Operating current | RX ＜20mA | TX=120mA@22dbm | mA |
Stand-by current | ＜2uA | uA | |
| Storage temperature | -40 | +125 | ℃ |
| Operating temperature | -40 | +85 | ℃ |
Radio frequency characteristics (Unless otherwise stated, temperature 25 ℃, VCC 3.3V)
| No | Parameter | Reference Value Min.-Typ.-Max. | Unit |
| 1 | Applied Frequency Range | 2400,—，2483.5 | MHz |
| 2 | Frequency Interval | —,100K,— | Hz |
| 3 | Transmit Power | -30,—,22 | dBm |
| 4 | Receiving sensitivity | —,-103,— | dBm |
| 5 | Modulation | GFSK,2-FSK,OOK | MSK |
| 6 | Transmission rate | 250,—,2000 | Kbps |
| 7 | Communication distance | 500,600,650 | M |
| 8 | Standby Power Consumption | —,—,0.9 | uA |
| 9 | Crystal Precision | —,10,— | PPM |

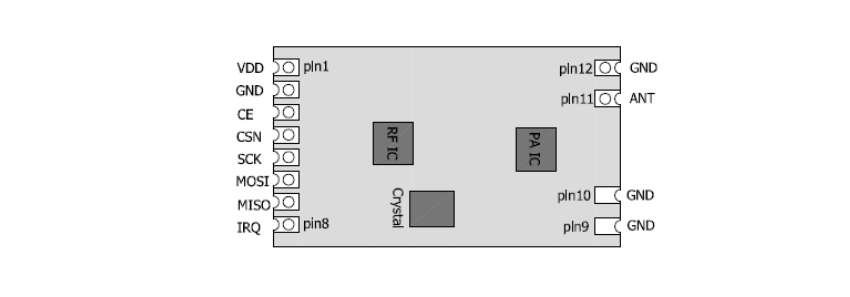

Pin Definitions
| Pin No | Pin’s Name | Description |
| 1 | VDD | Power Supply: 3V |
| 2 | GND | Grounding, common ground with the system |
| 3 | CE | Mode chip selection signal |
| 4 | CSN | SPI chip select signals |
| 5 | SCK | SPI Clock signals |
| 6 | MISI | SPI data input, MOSI |
| 7 | MOSO | SPI data output, MISO |
| 8 | IRQ | Interrupt signal |

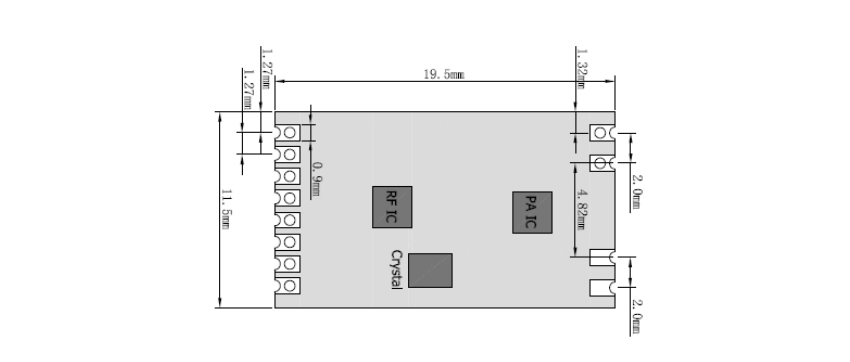

Size
DreamLnk offers various 2.4G RF modules, include 2.4G Receiving modules, 2.4G Transmitter modules, 2.4GHz RF front-end modules, 2.4G RF Transceiver Modules, 2.4G Modules with Enhanced Power (PA), welcome to inquire!
