DL-RFM96
DreamLNK
DL-RFM96
433/470Mhz
SX1276
20dBm
1.8~3.7 V
-139dBm
3000m
16*16*3.9mm
| Quantity: | |
|---|---|

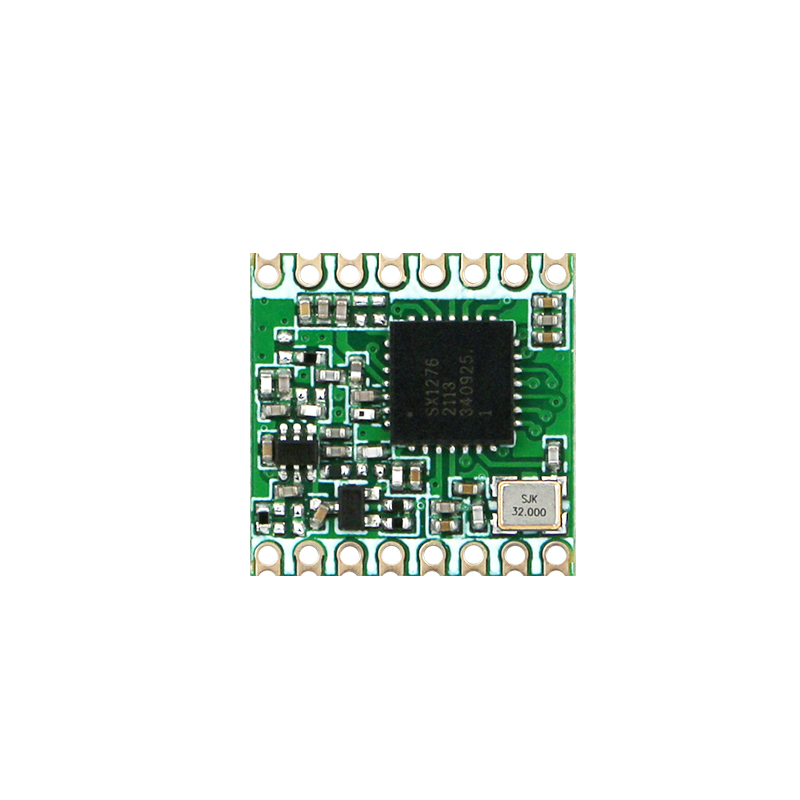

DL-RFM96 433/470Mhz Wireless FSK Transceiver Module
Brief Introduction
DL-RFM96 is a SX1276 chip based Wireless Transceiver Module, the DL-RFM95/96/98 transceivers feature the LoRa long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.
Using LoRa modulation technique DL-RFM95/96/98 can achieve a sensitivity of over -140dBm using a low-cost crystal and bill of materials. The high sensitivity combined with the integrated +20 dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robustness. LoRa also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption.
These devices also support high performance (G)FSK modes for systems including WMBus, IEEE802.15.4g. The DL-RFM95/96/98 deliver exceptional phase noise, selectivity, receiver linearity and IIP3 for significantly lower current consumption than competing devices.
Features
● LoRa Modem.
● 164 dB maximum link budget.
● +20 dBm - 100 mW constant RF output vs. 3.3V supply.
● +14 dBm high efficiency PA.
● Programmable bit rate up to 300 kbps.
● High sensitivity: down to -144 dBm.
● Bullet-proof front end: IIP3 = -12.5dBm.
● Excellent blocking immunity.
● Low RX current of 10.3 mA, 200 nA registerretention.
● Fully integrated synthesizer with a resolution of 61 Hz.
● FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
● Built-in bit synchronizer for clock recovery.
● Preamble detection.
● 127 dB Dynamic Range RSSI.
● Automatic RF Sense and CAD with ultra-fastAFC.
● Packet engine up to 256 bytes with CRC.
● Built-in temperature sensor and low batteryindicator.
● Module Size：16*16mm
Applications
● Automated Meter Reading.
● Home and Building Automation.
● Wireless Alarm and Security Systems.
● Industrial Monitoring and Control
● Long range Irrigation Systems
Download Center
DL-RFM95 / DL-RFM96 Specification V1.1
Product Versions
The features of the three product variants are detailed in the following table.
DL-RFM95/96 Device Variants and Key Parameters
Part Number | Frequency Band | Spreading Factor | Bandwidth | Effective Bitrate | Est. Sensitivity |
RFM95 | 868\915MHz | 6 - 12 | 125 - 500 kHz | .293-37.5 kbps | -111 to -136 dBm |
RFM96 | 433\470MHz | 6 - 12 | 62.5- 500 kHz | .1465-37.5 kbps | -112 to -140dBm |

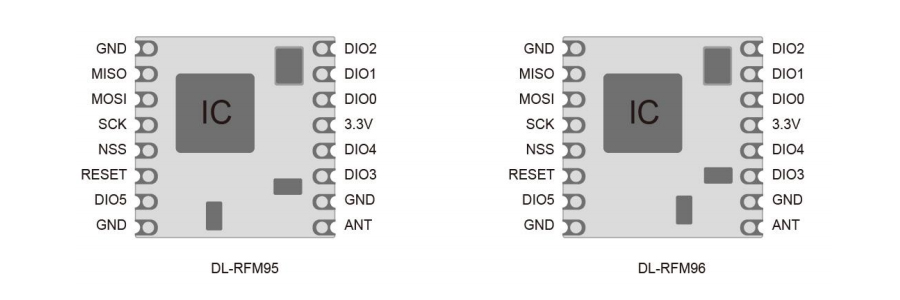

Pins Definition
Number | Name | Type | Description Description Stand Alone Mode |
1 | GND | - | Ground |
2 | MISO | O | SPI Data output |
3 | MOSI | I | SPI Data input |
4 | SCK | I | SPI Clock input |
5 | NSS | I | SPI Chip select input |
6 | RESET | I | Reset trigger input |
7 | DIO5 | I/O | Digital I/O, software configured |
8 | GND | - | Ground |
9 | ANT | - | RF signal output/input. |
10 | GND | - | Ground |
11 | DIO3 | I/O | Digital I/O, software configured |
12 | DIO4 | I/O | Digital I/O, software configured |
13 | 3.3V | - | Supply voltage |
14 | DIO0 | I/O | Digital I/O, software configured |
15 | DIO1 | I/O | Digital I/O, software configured |
16 | DIO2 | I/O | Digital I/O, software configured |

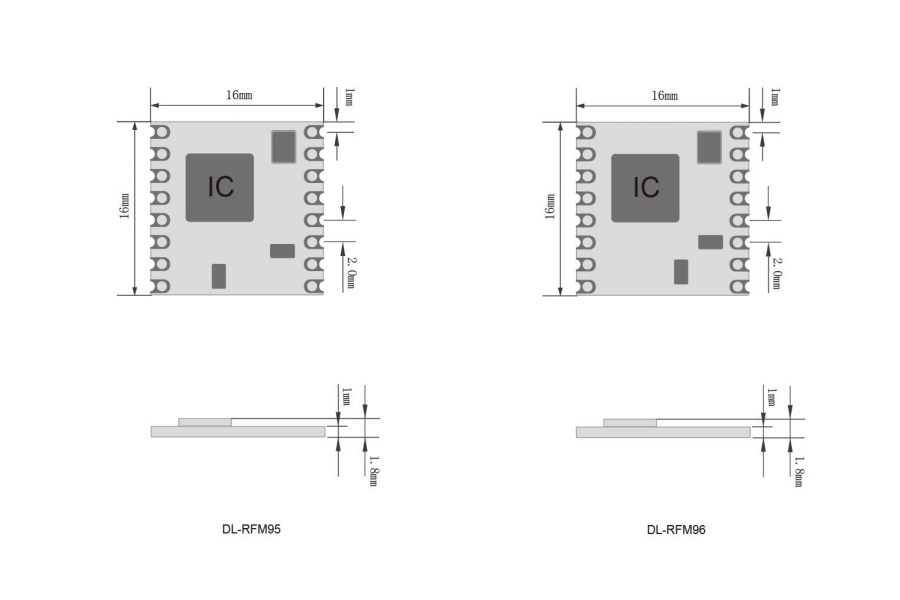

Size
Dreamlnk is a high-tech enterprise specializing in ISM band micropower wireless communication technology, providing different kinds of wireless modules and one-stop IoT solutions, including 433/868/915MHz wireless modules, 2.4G RF Modules, FSK Transceiver Modules, Antennas, Remote Controls, and customized wireless RF solutions. Welcome to inquire!
