DL-RTS4432
433M
Si4432
-45~-35dBm
-0.3~3V
-110dBm
1800m
15*12.5*2mm
| Quantity: | |
|---|---|

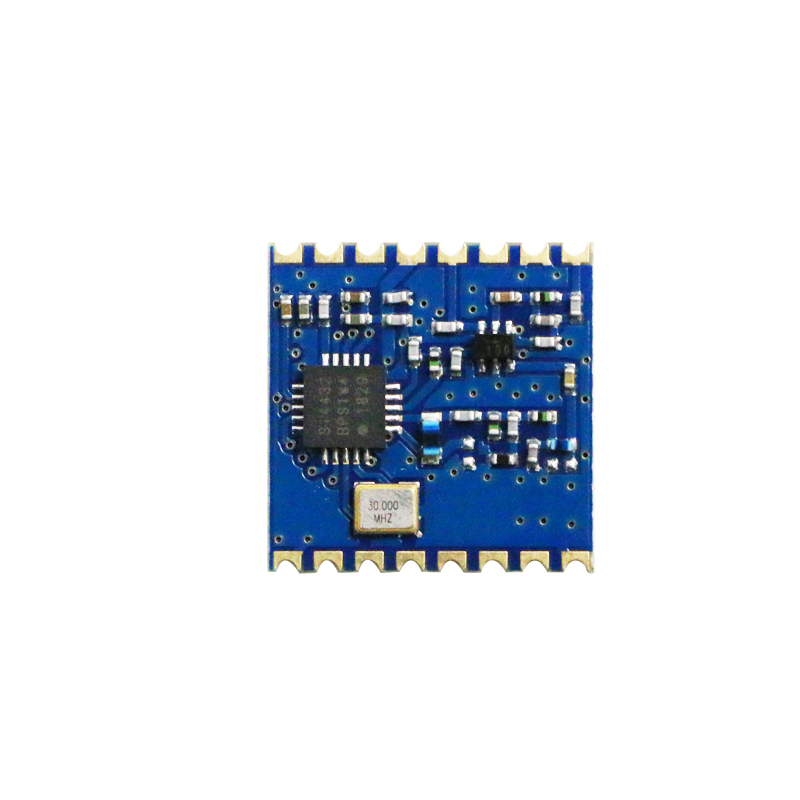

High-performance FSK Transceiver Module with Si4432 chip
Module introduction
DL-RTS4432 was designed base on Silicon Labs' Si4432 wireless transceiver chip. It is a compact, low-power, long-distance wireless transceiver module. The chip launched by Silicon Labs is mainly set to 315MHz, 433MHz, 868MHz, 915MHz and other special frequency bands of the national networks. The sensitivity can reach -121dbm, the maximum transmission rate can reach 128Kbps, and the output power can range from +1dbm to + 20dbm through the register configuration.
This wireless transceiver module integrates all RF-related functions. Users do not need to have a deep understanding of RF circuit design; they can use this module to easily develop wireless products with stable performance and high reliability, shortening the product development cycle.
DL-RTS4432 RF module adopts single-chip architecture, and the periphery adopts high-precision crystal, high-Q Murata inductor, small volume but high-capacity filter capacitor. All SMD components are used, and the interface is encapsulated with standard pitch stamps, which is conducive to the development of compact systems and the application of mass placement.
Features
● 1200m transmission distance (1200bps)
● Working frequency: 433.92m (other frequencies need to be customized)
● Operating voltage: 1.8V-3.6V
● Low current loss in SHUTDOWN mode
● Efficient 4 - line SPI interface
● Separate 64-byte RX FIFO and TX FIFO
● Support WOR wireless wake-up function for portable devices
Applications
● Wireless sensor;
● Home automation;
● Automated data collection;
● Industrial remote control, telemetry;
● Data monitoring and transmission;
● Home Appliance Control;
● Security, alarm control;
Download Center
Technical Parameter
DC characteristics
| Description | Min. | Max. | Unit |
| Supply voltage | 1.8 | 3.6 | V |
| Working current | RX ＜14mA | TX=75mA@20dbm | mA |
| Standby current | ＜1uA | mA | |
| IO port voltage | Vss-0.3 | Vdd+0.3 | V |
| Working temperature | -40 | 85 | ℃ |
DC characteristics of the Module
RF characteristics (Unless otherwise stated, the temperature is 25 ℃, and VCC is 3.3V)
| No | Characteristics | Index parameter range | Unit | ||
| Min. | Typi. | Max. | |||
| 1 | Frequency range (customized by industry) | 240 | 433.92 | 930 | MHz |
| 2 | Frequency interval | 100K | Hz | ||
| 3 | Transmit power | -20 | 20 | dBm | |
| 4 | Receive sensitivity | -121 | dBm | ||
| 5 | Modulation | GFSK | 2-FSK | OOK | MSK |
| 6 | Transmission rate | 1.2 | 128 | Kbps | |
| 7 | Harmonic power | -45 | — — | -35 | dBm |
| 8 | Communication distance | 800 | 1200 | M | |
| 9 | OOK Modulation mode, sensitivity | -110 | dBm | ||
| 10 | OOK modulation mode, rate | 40 | Kbps | ||
| 11 | Standby power consumption | 0.9 | MHz | ||
| 12 | Crystal accuracy | 10 | PPM | ||
High frequency characteristic table of the module
Pins Definition
| Pin | Name | Description | Remark |
| 1 | VDD | Antenna interface, 50Ω standard impedance | RF VDD |
| 2 | GND | Grounding, common ground with the system | |
| 3/4 | NC | Free pins, not connected to any hardware | |
| 5 | VCC | Power supply, DC2.0~3.6V | Configuration register |
| 6 | GPIO_0 | Implement different functional applications, and configure AMP transceiver capabilities | |
| 7 | NC | Free pins, not connected to any hardware | |
| 8 | MISO | Grounding, common ground with the system | |
| 9 | GND | 0~VDD Digital input | |
| 10 | SDO | SPI date output, MISO | |
| 11 | SDI | SPI data input，MOSI | |
| 12 | SCLK | SCLK input | |
| 13 | NSEL | SPI chip select input terminal | |
| 14 | NIRQ | For MCU Data Transmit/Receive Interrupt Response Processing | I/O |
| 15 | SDN | SDN=0 means working, SDN=1 entering low power state | Register value missing |

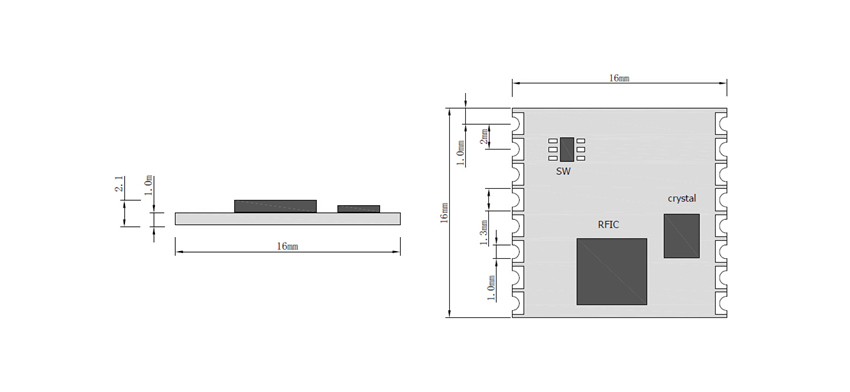

Size
Dreamlnk is a high-tech enterprise specializing in ISM band micropower wireless communication technology, providing various RF modules and one-stop IoT solutions, including 433/868/915MHz wireless modules, 2.4G RF Modules, FSK Transceiver module, Bluetooth modules, LoRa modules, UART module, etc. Welcome to inquire!
