DL-RTC1101B
433M
CC1101
-30~10dBm
1.8~3.6V
-114dBm
600m
17*11.7*2
| Quantity: | |
|---|---|
FSK Wireless Transceiver Module base on TI-Chipcon's CC1101 Transceiver Chip
DL-RTC1101B (Miniature version) was designed base on TI-Chipcon' S CC1101 wireless transceiver chip. It is a compact, long-distance, high-performance wireless transceiver module. The chip launched by TI-Chipcon is mainly set to 315MHz, 433MHz, 868MHz, 915MHz and other special frequency bands of the national networks. The sensitivity can reach -114dbm, the maximum transmission rate can reach 500Kbps, and the output power can range from -30dbm to + 10dbm through the register configuration.
This wireless module integrates all RF-related functions. Users do not need to have a deep understanding of RF circuit design; they can use this module to easily develop wireless products with stable performance and high reliability, shortening the product development cycle.
There are 2 interface modes (SMD and DIP) been adopted, which can not only meet customers' SMT application, but also realize transverse and longitudinal welding through 2.0mm standard stitch arrangement. The compact size of the module is convenient for portable products, and it can well meet the requirements of low-power system by combining with low-power MCU.
Features
● 600m transmission distance (1200bps)
● Working frequency: 433.92m (other frequencies need to be customized)
● Operating voltage: 1.8V-3.6V
● The most classical product in the SUB GHz RF modules
● Support up to 255 independent channels, can achieve soft frequency hopping
● Separate 64-byte RX FIFO and TX FIFO
● Efficient SPI four-pins interface
Applications
● Wireless sensor;
● Home automation;
● Automated data collection;
● Industrial remote control, telemetry;
● Data monitoring and transmission;
● Home Appliance Control;
● Security, alarm control;
Download Center
DL-RTC1101B Specification V1.1
Technical Parameter
DC characteristics
| Description | Min. | Max. | Unit |
| Supply voltage | 1.8 | 3.6 | V |
| Working current | RX ＜16mA | TX=75mA@20dbm | mA |
| Standby current | ＜1uA | mA | |
| IO port voltage | Vss-0.3 | Vdd+0.3 | V |
| Working temperature | -40 | 75 | ℃ |
DC characteristics of the Module
RF characteristics (Unless otherwise stated, the temperature is 25 ℃, and VCC is 3.3V)
| No | Characteristics | Index parameter range | Unit | ||
| Min. | Typi. | Max. | |||
| 1 | Frequency range (customized by industry) | 250 | 433.92 | 1000 | MHz |
| 2 | Frequency interval | 100K | Hz | ||
| 3 | Transmit power | -30 | 10 | dBm | |
| 4 | Receive sensitivity | -114 | dBm | ||
| 5 | Modulation | GFSK | 2-FSK | OOK | MSK |
| 6 | Transmission rate | 1.2 | 500 | Kbps | |
| 7 | Harmonic power | -45 | — — | -35 | dBm |
| 8 | Communication distance | 500 | 600 | M | |
| 9 | OOK Modulation mode, sensitivity | -108 | dBm | ||
| 10 | OOK modulation mode, rate | 100 | Kbps | ||
| 11 | Standby power consumption | 0.9 | MHz | ||
| 12 | Crystal accuracy | 10 | PPM | ||
High frequency characteristic table of the module

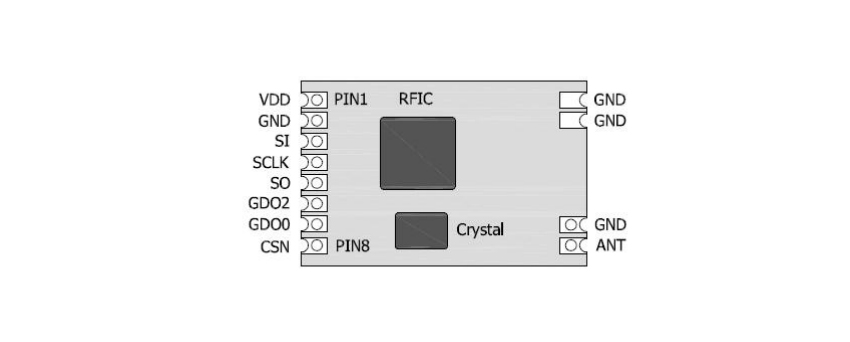

Pins Definition
| Pin | Name | Description | Remark |
| 1 | VDD | Power supply 3.3V | RF VDD |
| 2 | GND | Grounding, common ground with the system | |
| 3 | SI | MOSI signals of SPI interface | |
| 4 | SCLK | CLOCK signals of SPI interface | |
| 5 | SO | MISO signals of SPI interface | |
| 6 | GDO2 | GPIO2 pin, can be configured for other functions via registers | |
| 7 | GDO0 | GPIO0 pin, can be configured for other functions via registers | |
| 8 | CSN | CS signals (chip selection) of SPI interface | |
| 9 | ANT | Antenna, standard 50Ω antenna interface |

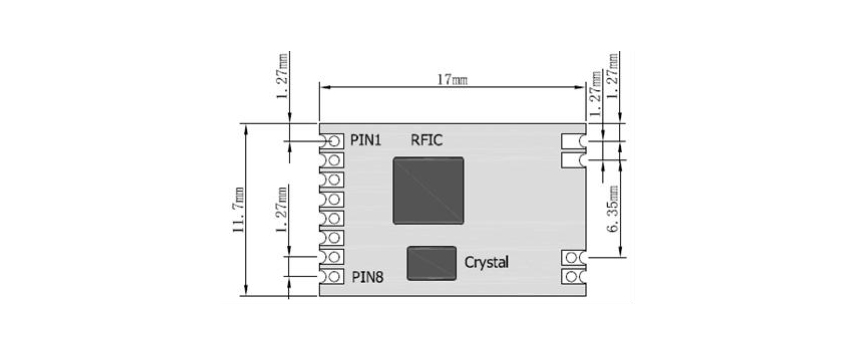

Size
As a professional wireless module supplier, and a third party design office (of TI, Silicon Labs, Semtech), DreamLNK is specialized in radio frequency field for almost 8 years! Welcome to inquire
